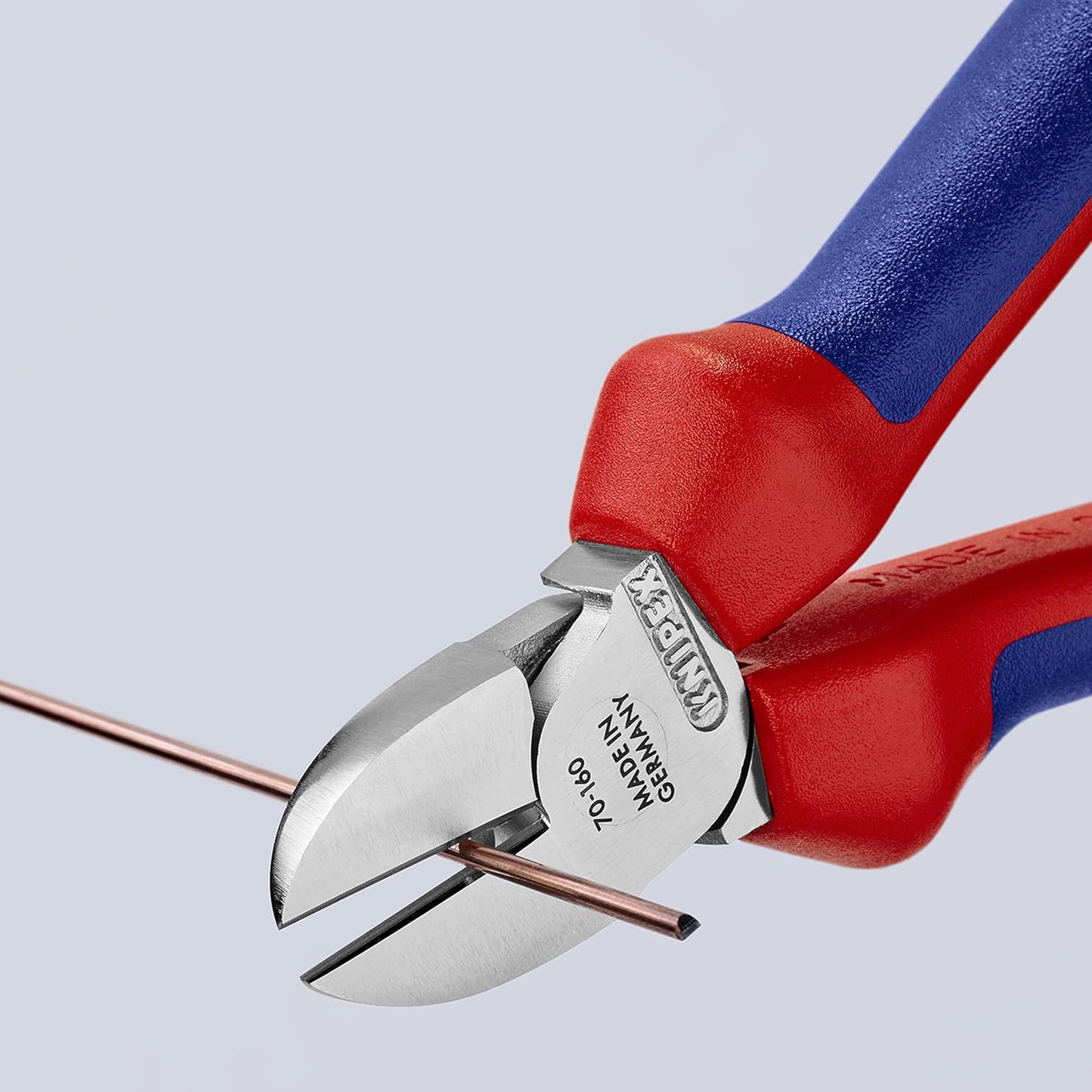

KNIPEX 70 05 160 Diagonal Cutter

KNIPEX 70 05 160 Diagonal Cutter

• Narrow head style for use in confined areas
• The indispensable diagonal cutter for all-round use
• High-quality material and precise workmanship for long service life
• Precision cutting edges for soft and hard wire
• Clean cutting of thin copper wires, also at the cutting edge tips
• Cutting edges additionally induction-hardened, cutting edge hardness approx. 62 HRC
• With elongated cutting edge
• With comfort handles: consisting of three ergonomic components for optimized handling and equipped with two KNIPEXtend interfaces for extensions

Technical attributes

Article No. : 70 05 160
EAN : 4003773039600
pliers : chrome-plated
head : chrome-plated
handles : with comfort handles
Dimensions : 55 x 21 mm
Standard : DIN ISO 5749
REACH compliant : does not contain SVHC
RoHS compliant : not applicable
Cutting capacities medium hard wire (diameter) : Ø 3.0 mm
Cutting capacities hard wire (diameter) : Ø 2.0 mm

Brief overview

Versatile diagonal cutters
Cut hard wire (e.g. wire rope fibre) up to Ø 2.0 mm and soft wire (e.g. copper wire) up to Ø 4.0 mm
Precise cutting also of fine CU wire, even with the tips of the cutting edges
Are also suitable when working in confined spaces thanks to their slim head shape
Production according to higher standards for optimal work results and a long service life
Cutting edges hardened to approx. 62 HRC for strength and a long tool life
Handles with multi-component grips
Vanadium electric steel, forged, oil hardened, chrome-plated
The versatile, chrome-plated diagonal cutters, 160 mm long

Optimised for the craftsman’s everyday work

Long appreciated by many craftsmen – the Knipex diagonal cutters with a length of 160 mm have been numbered among the classics in the Knipex range for a long time. From the shape of the head through to the polish and hardness of the cutting edges, they are customised for the diverse cutting tasks in the day-to-day work of electricians and mechatronics engineers.

Universal cutting capacity

With their cutting capacities of up to Ø 2.0 mm on hard wire (e.g. wire rope fibre) and up to Ø 4.0 mm on soft wire (e.g. copper wire), the Knipex 70 05 160 diagonal cutters offer a broad range of applications. The long cutting edges make them ideal for cutting cable.

The extremely carefully and precisely machined cutting edges enable even very fine stranded wire to be cut accurately – up to the tips of the cutting edges. This is a great advantage where space is restricted, for example when shortening fine stranded wires in junction boxes

Tough and durable

We forge the Knipex diagonal cutters from vanadium electric steel and make them strong by warming them and then quenching them in oil. To achieve a permanently accurate cut we additionally use high-frequency current to give the cutters a hardness of approx. 62 HRC. Thanks to the multi-component grips, the handles are non-slip and very comfortable.

Another advantage is the chrome plating. If the tool remains permanently in the service vehicle, for example, the chrome plating is an efficient protection against rust caused by condensation on the tool during temperature changes. A chrome-plated tool is also easy to clean.

*With ergonomic comfort handles made of three components; illustrations may show older grip cover types
