KNIPEX 87 00 100 Cobra® XS Water Pump Pliers

KNIPEX 87 00 100 Cobra® XS Water Pump Pliers

• Optimum accessibility, even in confined spaces: particularly compact design, very slim head
• One-handed fine adjustment by pushing for the simplest adjustment to different workpiece sizes
• Gripping capacity Ø 28 mm, width across flats up to 24 mm – at only 100 mm length
• Box joint: high quality and durability provided by dual guide
• Gripping surfaces with special hardened teeth, teeth hardness approx. 61 HRC: high wear resistance and stable gripping
• Self-clamping on pipes and nuts: no slipping on the workpiece, effortless working
  Pinch guard prevents operators' fingers being pinched
• Fine adjustment with 11 adjustment positions

Technical attributes

Article No. : 87 00 100
EAN : 4003773085836
pliers : grey atramentized
head : polished
handles : embossed, rough surface
Weight : 62 g
Dimensions : 100 x 30 x 10 mm
Standard : DIN ISO 8976
REACH compliant : does not contain SVHC
RoHS compliant : not applicable
adjustment positions : 11
Capacities for pipes (diameter) : Ø 1 Inch
Capacities for nuts : 24 mm
Capacities for pipes (diameter) : Ø 28 mm

Brief overview
Optimum working in confined spaces: particularly compact design with very slim head
Single-handed fine adjustment for extremely simple adaptation to all workpiece sizes
Permanently secure grip thanks to high wear resistance
Gripping capacity of Ø 28 mm, width across flats up to 24 mm – at only 100 mm length
Box joint: high quality and durability provided by dual guide
Self-locking on pipes and nuts: no slipping on the workpiece, effortless working
KNIPEX Cobra® XS water pump pliers: the smallest water pump pliers at a length of only 100 mm, for all environments

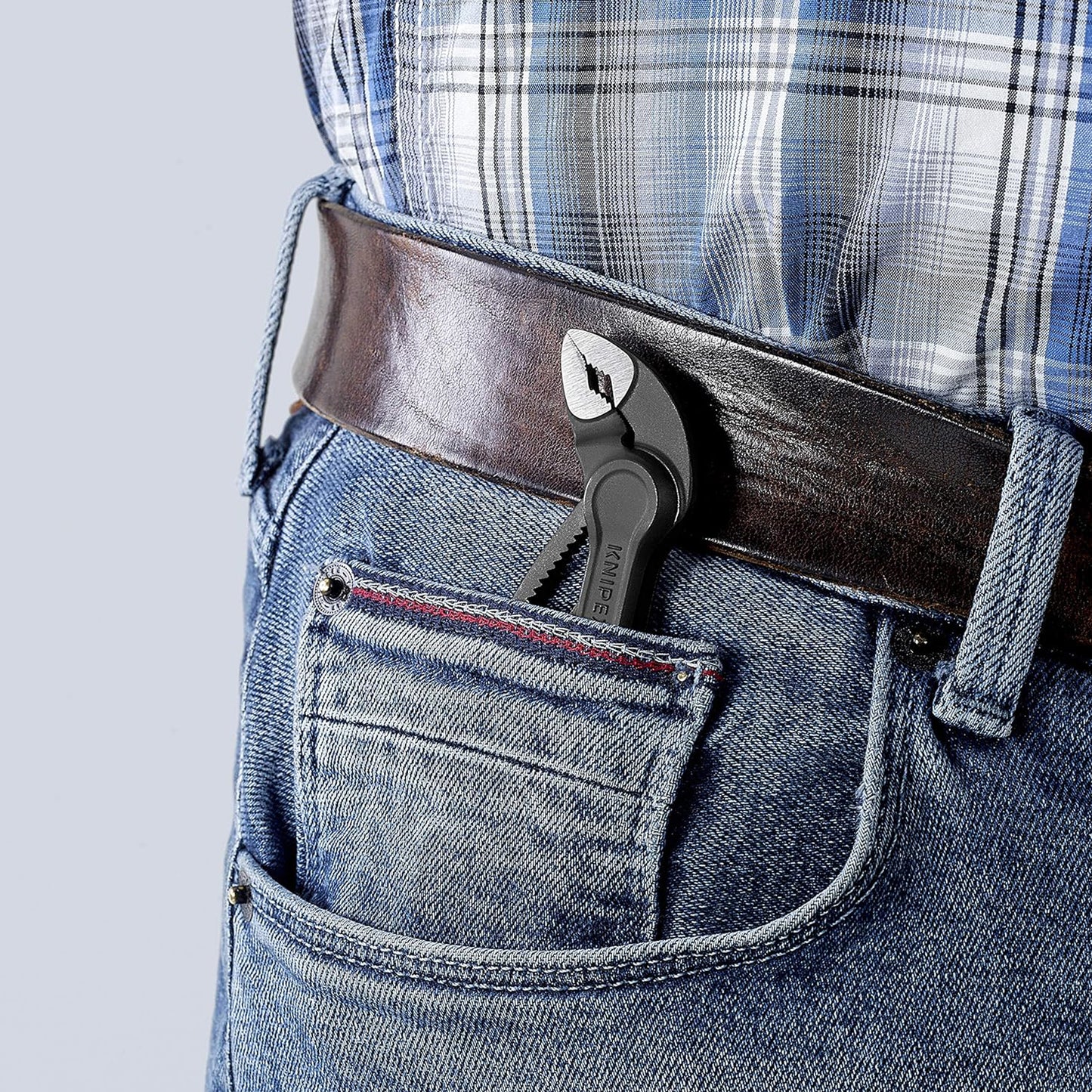

A small marvel: KNIPEX Cobra® XS with a length of only 100 mm – particularly compact design, ideal for working in the tightest of spaces thanks to its slim head

Small, useful and anything but a toy! The Cobra® XS is a new, compact member of the KNIPEX Cobra® family. It is a fully functional pair of high-tech water pump pliers that really comes into its own in tight spaces. With fine adjustment directly on the workpiece, this tool provides eleven adjustment positions and can grip nuts up to 24 mm in diameter and other workpieces as large as 28 mm – at an overall length of only 100 millimetres. Owing to its compact size, the Cobra® XS can be easily used with only one hand. Like all products in the KNIPEX Cobra® family, the Cobra® XS is of course self-locking on pipes and nuts: The result is no slipping at the workpiece and operations such as gripping, holding, pressing and bending are considerably less strenuous.

High-tech water pump pliers with many smart details

The robust box joint features an innovative mechanism for adjusting the opening width: Simply place the upper jaw half onto the workpiece, then push the lower jaw forwards. The gripping surfaces have specially hardened teeth (approx. 60 HRC): for a permanently secure grip and high wear resistance. A pinch guard protects against crush injuries.

The KNIPEX Cobra® family is growing

With the new KNIPEX Cobra® XS, the Cobra® family now includes members between a tiny 100 and a massive 560 millimetres. Whatever the size: perfect gripping, holding, pressing and bending with the ingenious self-locking effect!
