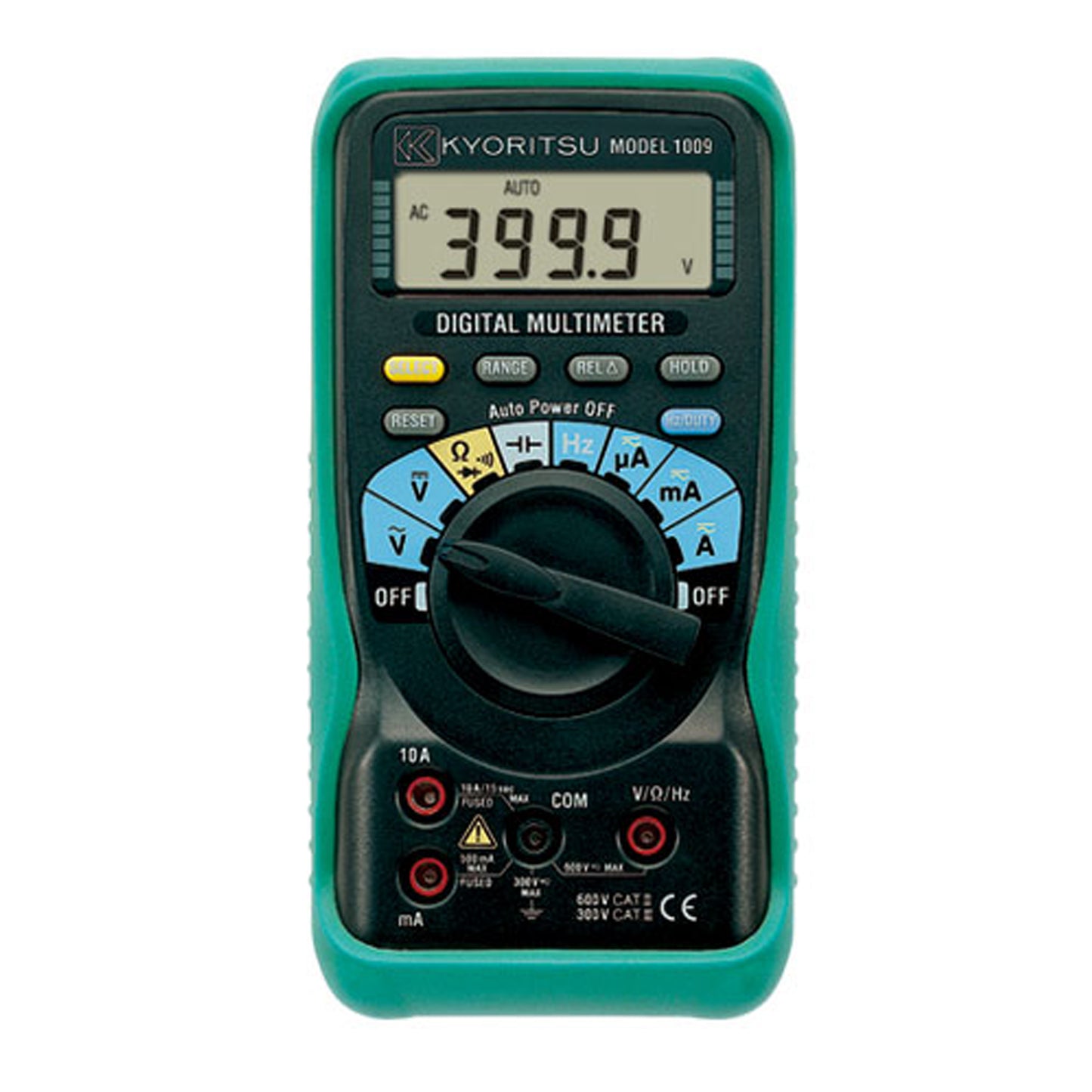

KYORITSU DIGITAL MULTIMETER KEW 1009

KYORITSU DIGITAL MULTIMETER KEW 1009

Regular price 2,475.00 EGP
Regular price 2,800.00 EGP Sale price 2,475.00 EGP
Sale Sold out
Shipping calculated at checkout.

KYORITSU DIGITAL MULTIMETER KEW 1009

  • Display : 3999 counts
  • Auto-ranging and manual ranging selector provided (with range hold feature)
  • Resistance range provides audible continuity test
  • Automatically turns power off in about 30 minutes to conserve battery life
  • Direct current measurement up to 10A AC and DC

Specification

DC V 400mV/4/40/400/600V (Input Impedance 10MΩ)
±0.6%rdg±4dgt (400mV/4/40/400V)
±1.0%rdg±4dgt (600V)
AC V 400mV/4/40/400/600V (Input Impedance 10MΩ)
±1.6%rdg±4dgt (20 - 400mV)
±1.3%rdg±4dgt (4/40V)
±1.6%rdg±4dgt (400/600V)
DC A 400/4000µA/40/400mA/4/10A
±2.0%rdg±4dgt (400/4000µA)
±1.0%rdg±4dgt (40/400mA)
±1.6%rdg±4dgt (4/10A)
AC A 400/4000µA/40/400mA/4/10A
±2.6%rdg±4dgt (400/4000µA)
±2.0%rdg±4dgt (40/400mA/4/10A)
Ω 400Ω/4/40/400kΩ/4/40MΩ
±1.0%rdg±4dgt (400Ω/4/40/400kΩ/4MΩ)
±2.0%rdg±4dgt (40MΩ)
Continuity buzzer 0 - 400Ω (Buzzer sounds below 100Ω)
Diode test 1.5V open circuit voltage: Approx. 0.4mA Test Current
Capacitance 40/400nF/4/40/100µF
Frequency 5.12/51.2/512Hz/5.12/51.2/512kHz/5.12/10MHz
DUTY 0.1 - 99.9% (Pulse width/Pulse period)
±2.5%±5dgt
Applicable standards IEC 61010-1 CAT III 300V, IEC 61010-2-031, IEC 61326
Power source R6 (1.5V) × 2
Dimension 161(L) × 82(W) × 50(D)mm
Weight Approx. 280g
Accessories 7066A (Test leads)
8919 (Ceramic fuse[10A/600V]) × 1 (included)
8923 (Fuse [0.5A/600V])× 1
R6× 2
Instruction Manual
Optional accessories 7234 (Crocodile clip test lead)
9095 (Carrying case)
