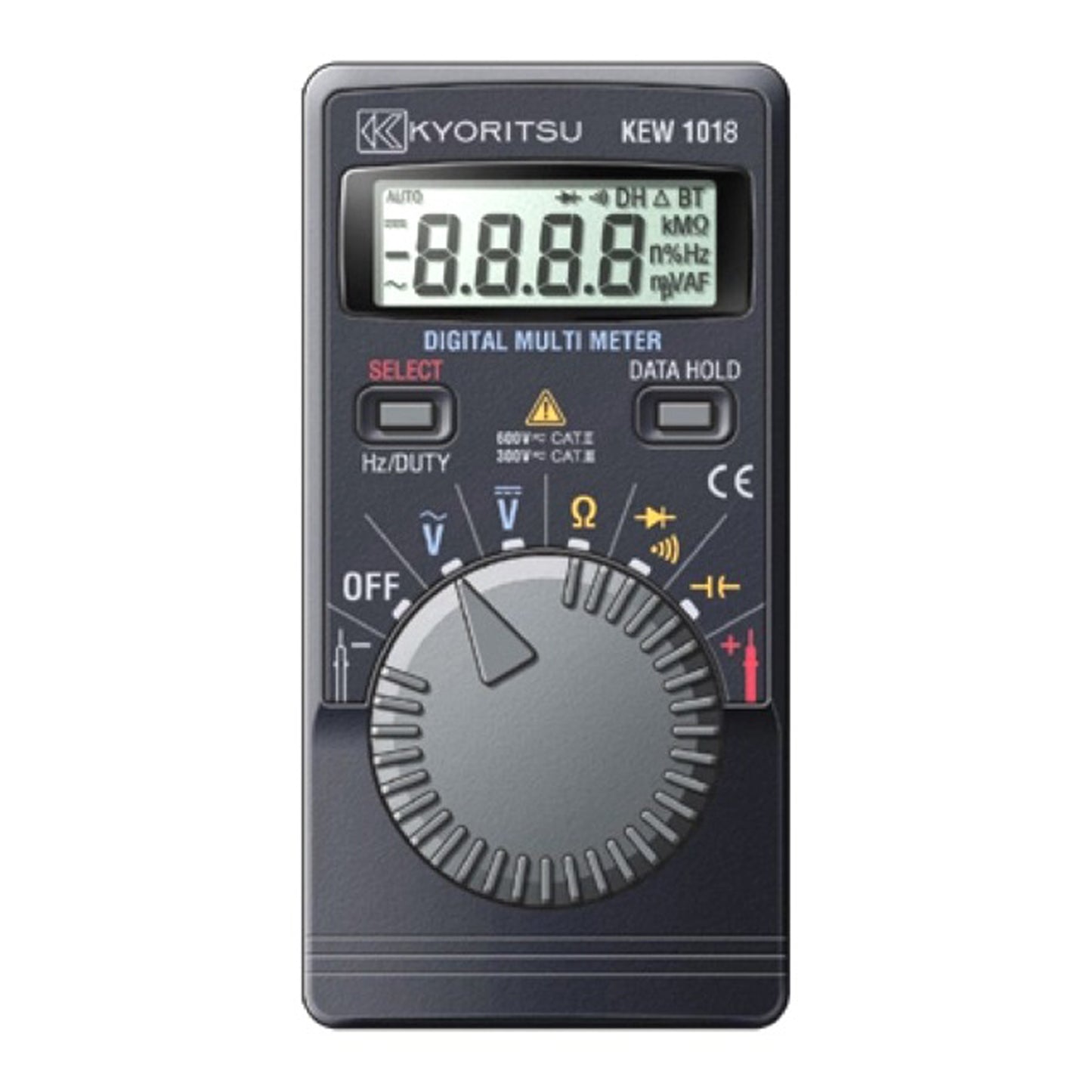

KYORITSU DIGITAL MULTIMETER KEW 1018

• Display : 4000 counts.
• Auto range.
• Diode test feature.
• Capacitance test feature.
• Continuity test.

Specification

DC V 400mV/4/40/400/600V (Input Impedance 10MΩ) ±0.8%rdg±5dgt (400mV/4/40/400V) ±1.0%rdg±5dgt (600V)
AC V 4/40/400/600V (Input Impedance 10MΩ) ±1.3%rdg±5dgt (4/40V) ±1.6%rdg±5dgt (400/600V)
Ω 400Ω/4/40/400kΩ/4/40MΩ ±1.0%rdg±5dgt (400Ω/4/40/400kΩ/4MΩ) ±2.5%rdg±5dgt (40MΩ)
Continuity buzzer 400Ω (Buzzer sounds below 120Ω)
Diode test 4V Release Voltage:Approx. 0.4mA Test Current
Capacitance 4nF/40nF/400nF/4µF/40µF/200µF
Frequency 10/100Hz/1/10/100/200kHz
Applicable standards IEC 61010-1 CAT III 300V IEC 61010-2-031 IEC 61326-1
Display 4000 counts
Power source LR44 (1.5V) × 2
Dimension 107(L) × 54(W) × 10(D)mm
Weight 70g approx.
Accessories LR44× 2 Instruction Manual 1018 (Soft Case) 1018H (Hard Case)
