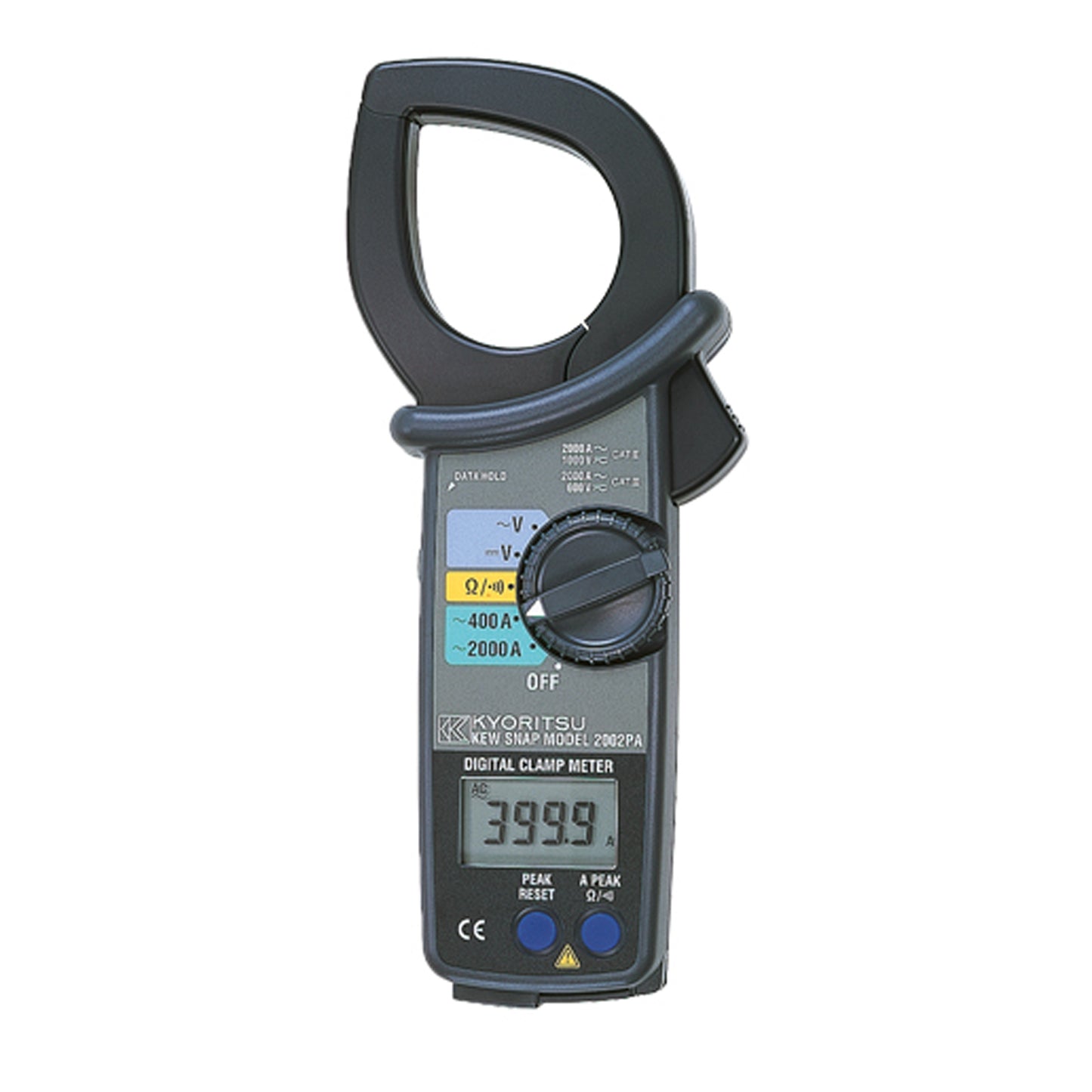

KYORITSU AC CLAMP METER 2002 PA
KYORITSU AC CLAMP METER 2002 PA
Regular price
9,890.00 EGP
Regular price
10,200.00 EGP
Sale price
9,890.00 EGP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
KYORITSU AC CLAMP METER 2002 PA
- Can measure large AC current up to 2000A
- Peak hold function
- φ55mm large tear drop shaped jaws
- Minimum resolution 0.1A
Specification
| AC A | 400A (0 - 400A) ±1%rdg±3dgt[50/60Hz] ±2%rdg±3dgt[40Hz - 1kHz] 2000A(0 - 1500A) ±1%rdg±3dgt[50/60Hz] ±3%rdg±3dgt[40Hz - 1kHz] 2000A (1500 - 2000A) ±3.0%rdg [50/60Hz] |
|---|---|
| AC V | 40/400/750V ±1%rdg±2dgt [50/60Hz] ±1.5%rdg±3dgt [40Hz - 1kHz] |
| DC V | 40/400/1000V ±1%rdg±2dgt |
| Ω | 400Ω/4/40/400kΩ ±1.5%rdg±2dgt |
| Continuity buzzer | Buzzer sounds below 50±35Ω |
| Conductor size | φ55mm max. |
| Frequency response | 40Hz - 1kHz |
| Output | Recorder : DC400mV against AC400A DC200mV against AC2000A |
| Safety Standard | IEC 61010-1 CAT III 600V / CAT II 1000V IEC 61010-2-031 IEC 61010-2-032 |
| Power source | R6 (AA) (1.5V) × 2 |
| Dimension | 247(L) × 105(W) × 49(D)mm |
| Weight | Approx. 470g |
| Accessories |
7107A (Test leads) 9094 (Carrying Case) R6 (AA) × 2 Instruction Manual |
| Optional Accessories | 7256 (Output cord) |
