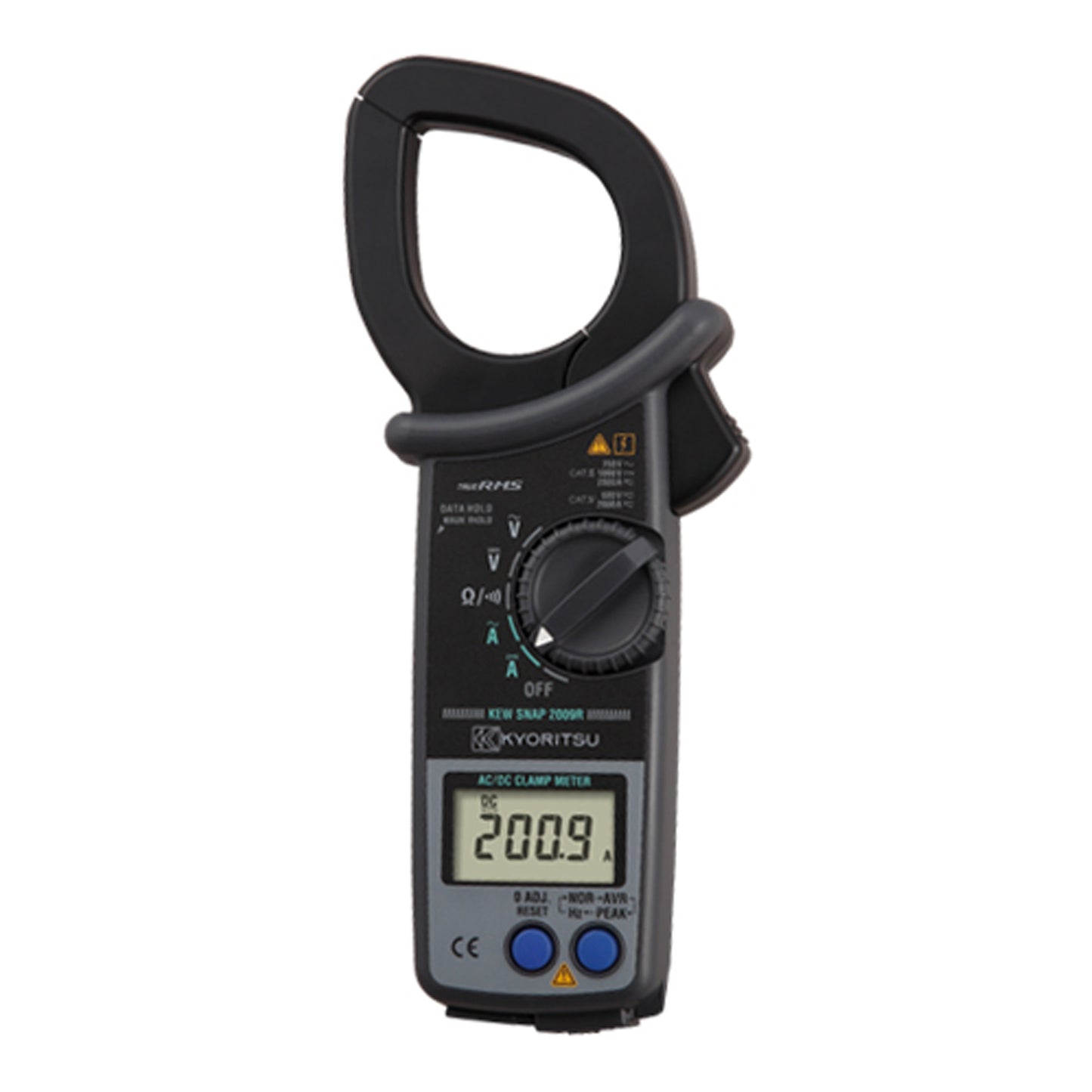

KYORITSU AC/DC CLAMP METER KEW 2009 R
KYORITSU AC/DC CLAMP METER KEW 2009 R
Regular price
21,650.00 EGP
Regular price
21,650.00 EGP
Sale price
21,650.00 EGP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
KYORITSU AC/DC CLAMP METER KEW 2009 R
- True RMS reading instrument ideal for accurate measurement of distorted waveforms and non-sinusoidal waveforms arising from thyristors
- Can measure AC and DC currents up to 2000A
- Output terminal for recorder connection
- Minimum resolution 0.1A
Specification
| AC A | 400.0/2000A ±1.3%rdg±3dgt (0 - 400.0A, 150 - 1700A) [45 - 66Hz] ±2.0%rdg±5dgt (0 - 400.0A, 150 - 1700A) [20Hz - 1kHz] ±2.3%rdg±3dgt (1701 - 2000A) [45 - 66Hz] |
|---|---|
| DC A | 400.0/2000A ±1.3%rdg±2dgt |
| AC V | 40.00/400.0/750V ±1.0%rdg±3dgt [45 - 66Hz] ±1.5%rdg±5dgt [20Hz - 1kHz] |
| DC V | 40.00/400.0/1000V ±1.0%rdg±2dgt |
| Ω | 400.0/4000Ω ±1.5%rdg±2dgt (Electronic protection (no fuse) up to 600V) |
| Continuity buzzer | Buzzer sounds below 20±1Ω |
| Hz | 10.0 - 4000Hz±1.5%rdg±5dgt (Input sensitivityCurrent: more than 40AVoltage: more than 10V) |
| Conductor size | φ55mm max. |
| Output | Recorder : DC400mV against AC/DC400.0A DC200mV against AC/DC2000A |
| Applicable standards | IEC 61010-1 CAT IV 600V / CAT III 1000V Pollution degree 2 IEC 61010-031, IEC 61010-2-032, IEC 61326-2-2 |
| Power source | R6 (1.5V) × 2 |
| Dimension | 250(L) × 105(W) × 49(D)mm |
| Weight | Approx. 540g (including batteries) |
| Accessories |
7107A (Test leads) 9094 (Carrying case) R6 (AA) × 2, Instruction Manual |
| Optional Accessories | 7256 (Output cord) |
