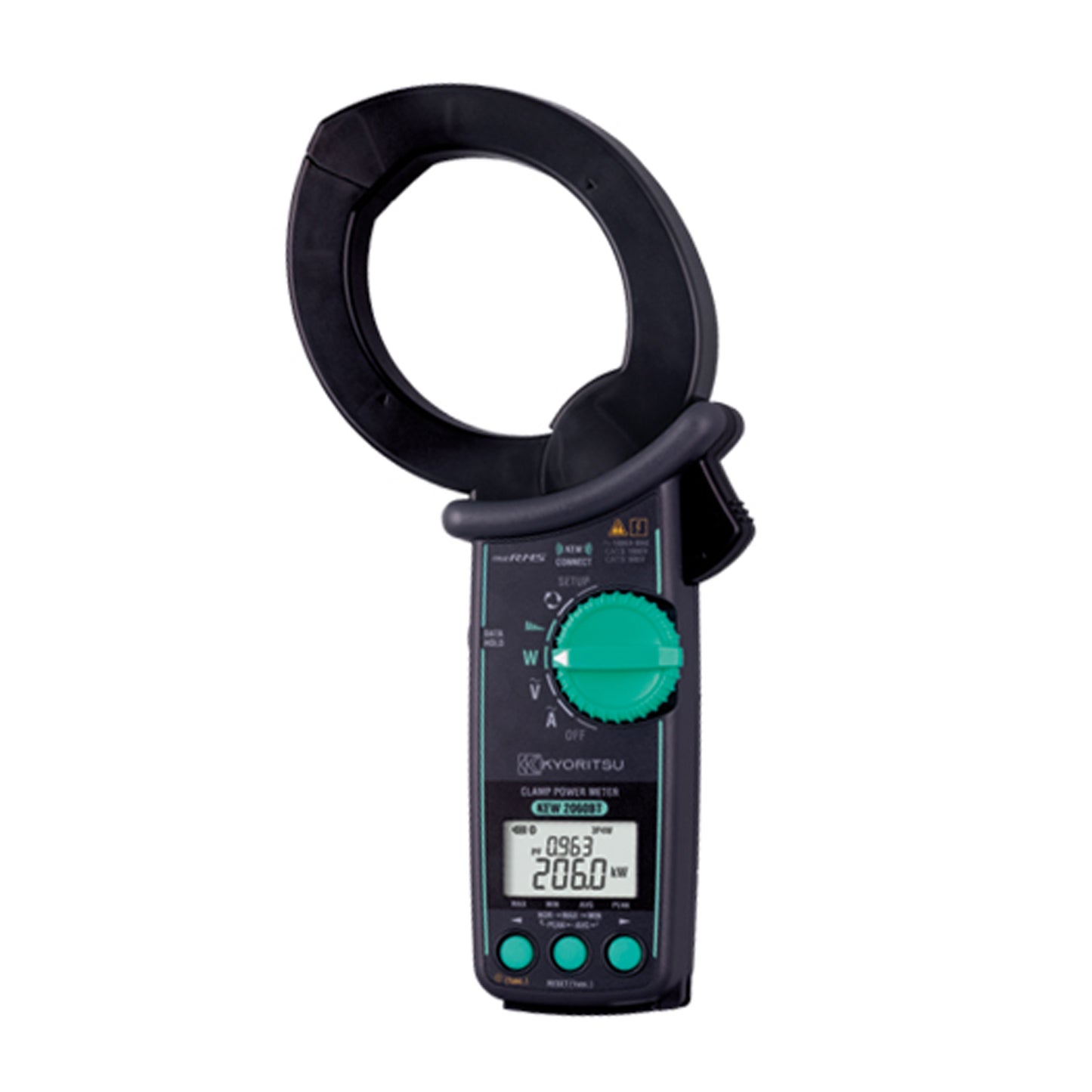

KYORITSU CLAMP POWER METER KEW 2060BT
Extremely large jaw with tear drop shape:
ideal solution for busbar and large currents!
- Current up to 1000A rms
- Voltage up to 1000V rms
- Harmonics up to 30th
- KEW 2060BT has a newly designed special jaw shape for using at a large busbar Extremely large jaw with tear drop shape can clamp a large busbar with safe
(Conductor size 75mm, Busbar 80mm x 30mm)
Specification
| Wiring connections | 1P2W, 1P3W, 3P3W, 3P4W | ||||||
|---|---|---|---|---|---|---|---|
| Measurements and parameters |
Voltage, Current, Frequency, Active power, Reactive power, Apparent power, Power factor(cosθ), Phase angle, Harmonics(THD-R/THD-F), Phase rotation | ||||||
| ACV | |||||||
| Range | 1000V | ||||||
| Accuracy | ±0.7%rdg±3dgt (40.0 - 70.0Hz) ±0.3%rdg±5dgt (70.1Hz - 1KHz) |
||||||
| Crest factor | 1.7 or less | ||||||
| ACA | |||||||
| Range | 40.00/400.0/1000A (3 range auto) | ||||||
| Accuracy | ±1.0％rdg±3dgt (40.0 - 70.0Hz) ±2.0％rdg±5dgt (70.1Hz - 1kHz) |
||||||
| Crest factor | 3 or less on 40.00A/400.0A range, 3 or less 1500A peak on 1000A range | ||||||
| Frequency | |||||||
| Display Range | 40.0 - 999.9Hz | ||||||
| Accuracy | ±0.3％rdg±3dgt | ||||||
| Active power | |||||||
| Range | 40.00/400.0/1000kW | ||||||
| Accuracy | ±1.7%rdg±5dgt (PF1, sine wave, 45 - 65Hz) | ||||||
| Apparent power | |||||||
| Range | 40.00/400.0/1000kVA | ||||||
| Accuracy |
±1dgt against each calculated value Sum: add errors of each channel, 3P3W: ±2dgt, 3P4W:±3dgt |
||||||
| Reactive power | |||||||
| Range | 40.00/400.0/1000kVar | ||||||
| Accuracy |
±1dgt against each calculated value Sum: add errors of each channel, 3P3W: ±2dgt, 3P4W:±3dgt |
||||||
| Power factor | |||||||
| Display Range | -1.000 - 0.000 - +1.000 | ||||||
| Accuracy |
±1dgt against each calculated value Sum: add errors of each channel, 3P3W: ±2dgt, 3P4W:±3dgt |
||||||
| Phase angle (1P2W only) | |||||||
| Display Range | -180.0 - 0.0 - +179.9 | ||||||
| Accuracy | Within ±3.0° | ||||||
| Harmonics RMS(Content rate) | |||||||
| Analysis order | 1st - 30th order | ||||||
| Accuracy | ±5.0％rdg ± 10dgt (1 - 10th) ±10％rdg ± 10dgt (11 - 20th) ±20％rdg ± 10dgt (21 - 30th) |
||||||
| Total harmonics THD-R/THD-F | |||||||
| Display Range | 0.0% - 100.0% | ||||||
| Accuracy | ±1dgt against the calculated results of each measured value | ||||||
| Phase rotation | ACV 80 - 1100V (45 - 65Hz) | ||||||
| Other functions | MAX/MIN/AVG/PEAK, Data hold, Bluetooth®, Backlight, Auto power off | ||||||
| General | |||||||
| Communication interface |
Bluetooth® 5.0 | ||||||
| Power source | LR6 (AA) (1.5V) ×2 | ||||||
| Continuous measuring time |
Approx. 58 hours | ||||||
| Conductor size | φ75 mm max. (busbar of 80mm × 30mm) | ||||||
| Dimension / Weight | 283(L) × 143(W) × 50(D) mm / Approx. 590g (including batteries) | ||||||
| Applicable standards |
IEC 61010-1, IEC 61010-2-032, IEC 61326-1,2-2 ClassB |
||||||
| Accessories |
7290 (Test leads) 9198 (Carrying Case) LR6(AA)×2, Instruction Manual |
||||||
* Some countries regulate the compliance with their Radio Law of the products equipped with BluetoothⓇ.
Please confirm it with your distributor before purchasing our products equipped with Bluetooth®.
