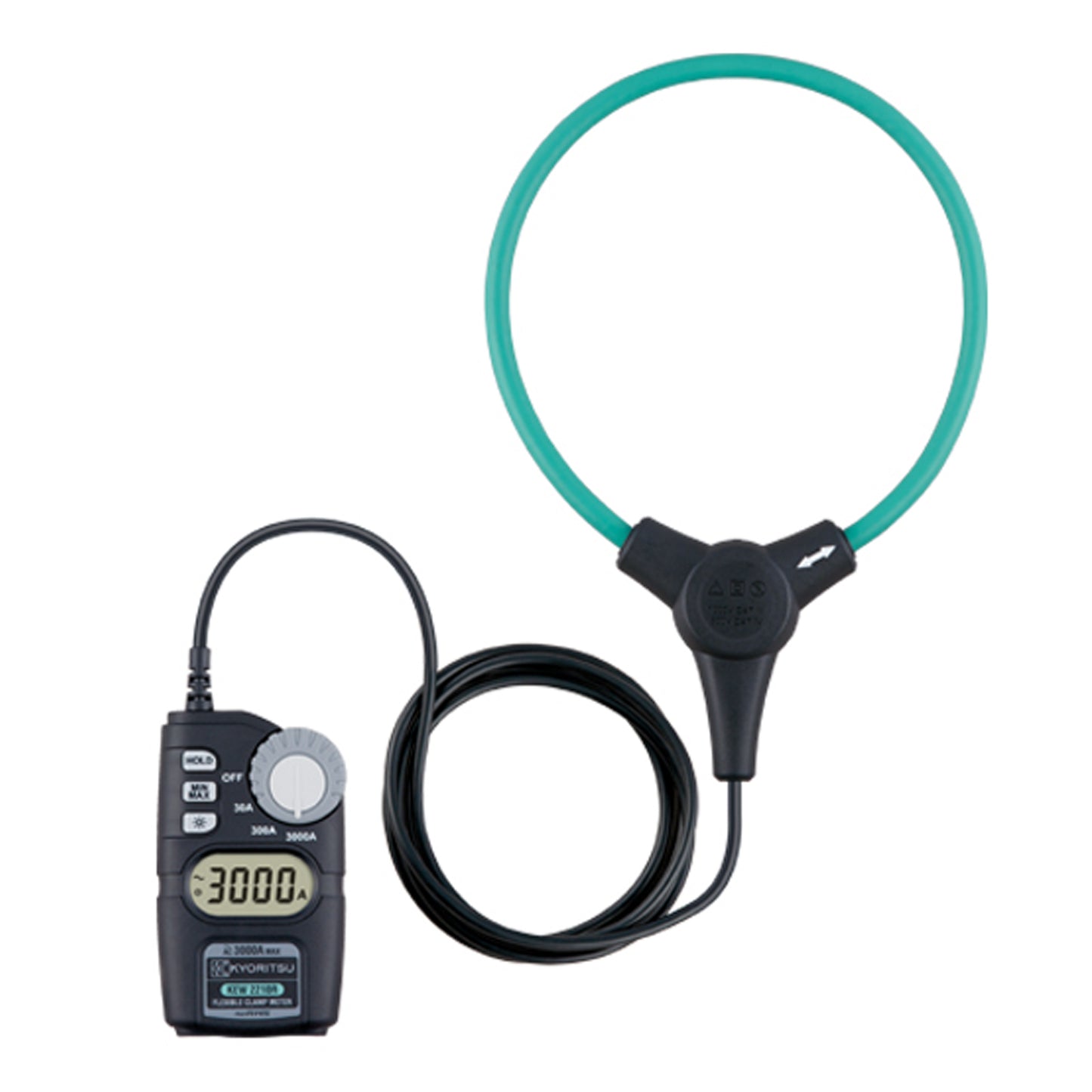

• KYORITSU AC CLAMP METER KEW 2210R
1 1

KYORITSU AC CLAMP METER KEW 2210R

KYORITSU AC CLAMP METER KEW 2210R

14,360.00 EGP
15,000.00 EGP 14,360.00 EGP
Sale Sold out
Shipping calculated at checkout.

KYORITSU AC CLAMP METER KEW 2210R

  • Flexible and light weight clamp sensor
  • Wide reading range up to 3000A
  • True RMS
  • MIN / MAX function
  • Backlight LCD display
  • IEC 61010-1 CAT Ⅳ 600V / CAT Ⅲ 1000V
  • Minimum resolution 0.01A

Specification

AC A
Range 30.00/300.0/3000A
Accuracy ±3%rdg±5dgt[45-500Hz]
(At the center of the circle formed by the flexible sensor)
Crest factor
(CF)		 Full scale CF<1.6, half scale<3.2
Effective input crest values are √2 times of the max values of each range.
Conductor size φ150mm max.
Influence of Conductor position Additional ±3% (max.) depending on the distance from the center position
Overload protection 5000A AC for 10 seconds
Applicable standards IEC 61010-1, IEC 61010-2-032
CAT Ⅳ 600V / CAT Ⅲ 1000V Pollution degree 2
IEC 61326-1(EMC) , IEC 60529 IP40 , EN50581(RoHS)
Operating temperature
and humidity range		 0 - +50℃,relative humidity 80% or less(no condensation)
Storage temperature
and humidity range		 -10 - +60℃,relative humidity 70% or less(no condensation)
Power source R03 / LR03(AAA)(1.5V)×2
※Continuous measuring time：Approx.120hours
(Auto power off：Approx.15 minutes)
Dimension 120(L)×70(W)×26(D)：Display unit
φ8.5mm approx.：Cable diameter
1.8m : Cable length
Weight Approx. 300g (including batteries)
Accessories 9174 (Carrying case)
LR03(AAA)×2, Insruction manual
