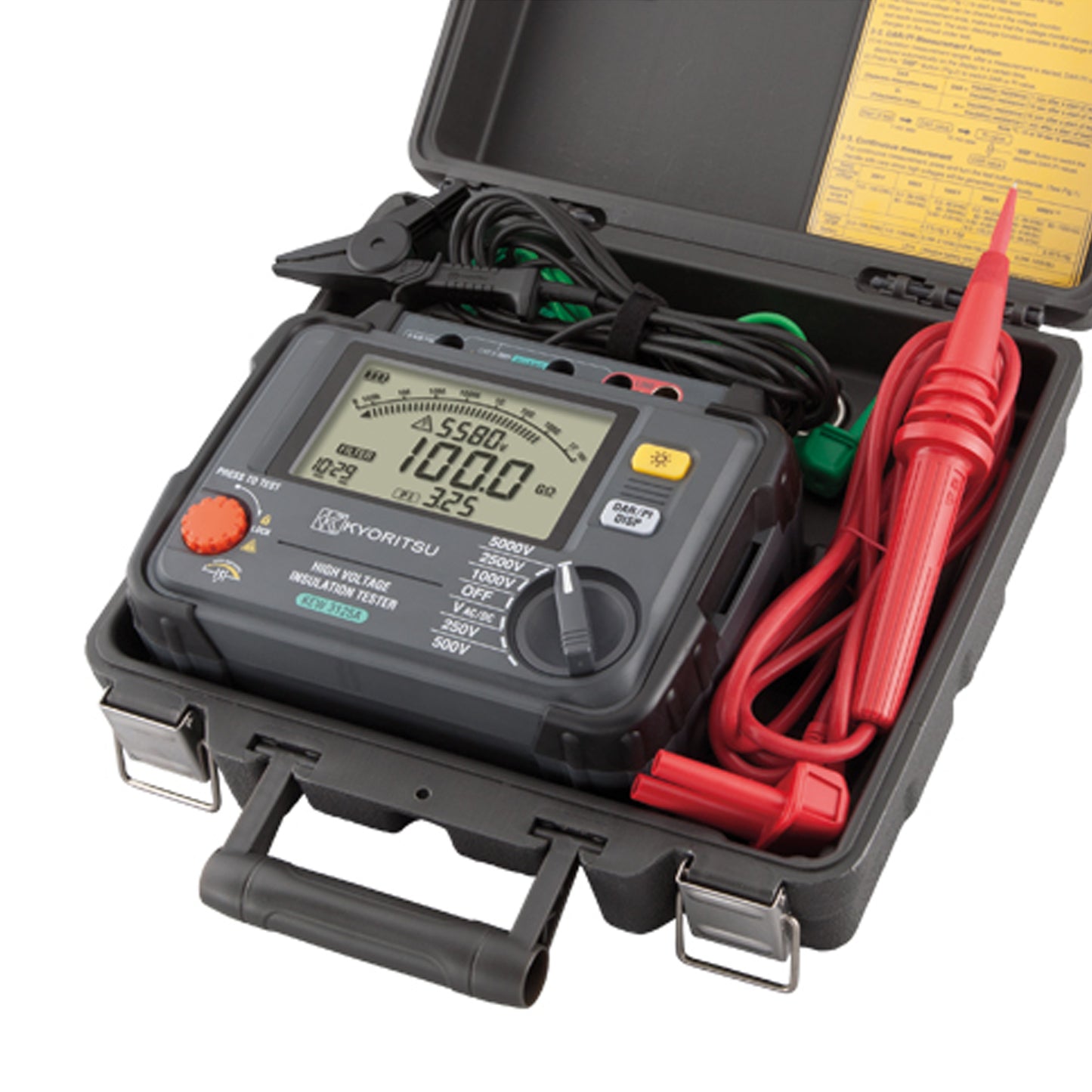

• KYORITSU HIGH VOLTAGE INSULATION TESTER KEW 3125A
1 1

KYORITSU HIGH VOLTAGE INSULATION TESTER KEW 3125A

KYORITSU HIGH VOLTAGE INSULATION TESTER KEW 3125A

43,550.00 EGP
45,000.00 EGP 43,550.00 EGP
Sale Sold out
Shipping calculated at checkout.

KYORITSU HIGH VOLTAGE INSULATION TESTER KEW 3125A

  • Insulation Resistance up to 1TΩ
  • Short-Circuit Current up to 1.5mA
  • Wide Test Voltage from 250V to 5000V
  • Diagnosis Function of PI and DAR
  • Newly-designed alligator clip
  • It comes with a tough hard case
  • Filter function reduces noise interference for obtaining stable measurement
  • Large display with Bar Graph indication and backlight
  • Live voltage warning
  • Safety standard IEC 61010-1 CAT IV 300V / CAT III 600V

Specification

Insulation resistance

Test voltage 250V 500V 1000V 2500V 5000V
Measuring range 0.0 - 100.0MΩ 0.0 - 99.9MΩ
80 - 1000MΩ  		 0.0 - 99.9MΩ
80 - 999MΩ
0.80 - 2.00GΩ		  0.0 - 99.9MΩ
 80 - 999MΩ
 0.80 - 9.99GΩ
 8.0 - 100.0GΩ		 0.0 - 99.9MΩ
80 - 999MΩ
0.80 - 9.99GΩ
8.0 - 99.9GΩ
80 - 1000GΩ
Accuracy ±5%rdg±3dgt ±5%rdg±3dgt ±5%rdg±3dgt ±5%rdg±3dgt ±5%rdg±3dgt
±20%rdg
(100GΩ or more)
Short circuit current 1.5mA
Rated test current 0.7 - 0.9mA at 0.25MΩ load 0.8 - 1mA at 0.5MΩ load 1 - 1.2mA at 1MΩ load 1 - 1.2mA at 2.5MΩ load 1mA - 1.2mA at 5MΩ load
Open circuit current 250V
+10%,-10%		 500V
+20%,-10%		 1000V
+20%,-0%		 2500V
+20%,-0%		 5000V
+20%,-0%

Voltage measurement

Measuring range AC: 30 - 600V (50/60Hz)
DC: ±30 - ±600V
Accuracy ±2%rdg±3dgt
General
Applicable standards IEC 61010-1, 61010-2-030 CAT Ⅳ 300V / CAT Ⅲ 600V Pollution degree 2
IEC 61010-031, IEC 61326-1, 2-2
Power source DC12V : LR14/R14 × 8pcs
Dimension 177 (L) × 226 (W) × 100 (D) mm
300 (L) × 315 (W) × 125 (D) mm (Carring case [Hard])
Weight 1.9kg approx. (including batteries)
4kg approx. (including accessories)
Accessories 7165A (Line probe)
7264 (Earth cord)
7265 (Guard cord)
8019 (Hook type prod)
9181 (Carring case [Hard])
LR14 (Alkaline battery size C) × 8
Instruction manual
Optional accessories 7168A (Line probe with alligator clip)
7253 (Longer line probe with alligator clip)
8302 (Adaptor for recorder)
