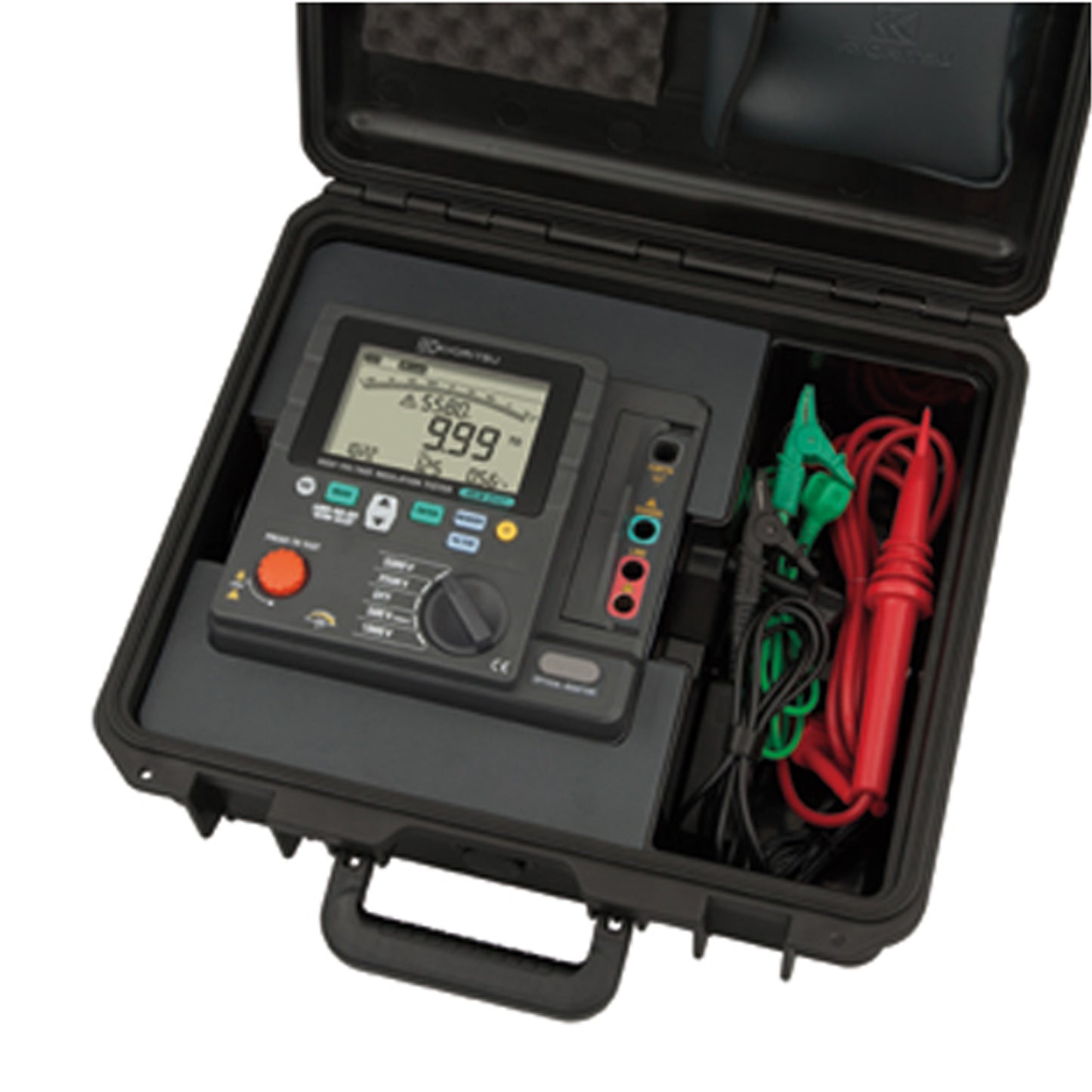

KYORITSU HIGH VOLTAGE INSULATION TESTER KEW 3127

KYORITSU HIGH VOLTAGE INSULATION TESTER KEW 3127

115,500.00 EGP
117,000.00 EGP 115,500.00 EGP
Sale Sold out
Shipping calculated at checkout.

KYORITSU HIGH VOLTAGE INSULATION TESTER KEW 3127

  • Insulation Resistance up to 10TΩ
  • Short-Circuit Current up to 5mA
  • Wide Test Voltage from 250 to 5000V
  • Diagnostic Insulation Tests: IR, PI, DAR, DD, SV, RAMP
  • Wireless communication by Bluetooth for transferring and showing real-time data to PC and Android device
  • Memory and Logging functions
  • Filter function reduces noise interference
  • Robust design for field use with IP65 (lid closed)
  • Rechargeable battery

Specification

Insulation resistance
Test voltage 250V (*1) 500V 1000V 2500V 5000V
Max measurement value 9.99GΩ 99.9GΩ 199GΩ 999GΩ 9.99TΩ
Accuracy 0.0 - 99.9MΩ
±5%rdg±3dgt		 0.0 - 999MΩ
±5%rdg±3dgt		 0.0 - 1.99GΩ
±5%rdg±3dgt		 0.0 - 99.9GΩ
±5%rdg±3dgt		 0.0 - 99.9GΩ
±5%rdg±3dgt
0.1 - 9.99GΩ
±20%rdg		 1 - 99.9GΩ
±20%rdg		 2 - 199GΩ
±20%rdg		 100 - 999GΩ
±20%rdg		 0.1 - 9.99TΩ
±20%rdg
Short circuit current Max 5.0mA
Output voltage Accuracy -10 - +10% -10 - +20% 0 - +20%
Variable - -20% - 0% (by 5%)
Monitor ±10%rdg±20V

Voltage measurement
Measuring range AC: 30 - 600V (50/60Hz)
DC: ±30 - ±600V
Accuracy ±2%rdg±3dgt

Current measurement
Measuring range 0.00nA - 5.50mA
Accuracy ±10%rdg (*2)

Capacitance measurement
Measuring range 5.0nF - 50.0µF
5.0nF - 25.0µF (5000V)
Accuracy ±5%rdg±5dgt
General
Applicable standards
 		IEC 61010-1, 61010-2-030 CAT Ⅳ 600V Pollution degree 2
IEC 61010-2-034, IEC 61010-031, IEC 61326-1, 2-2
Power source Rechargeable Battery (Lead-acid Battery) 12V (*3) Charging power: DC 15VA MAX
Communication interface USB, Bluetooth®5.0
Dimension
 		208 (L) × 225 (W) × 130 (D) mm
380 (L) × 430 (W) × 154 (D) mm (Hard case)
Weight
 		3127: Approx. 4kg (including battery)
Total: Approx. 8kg (including Accessories)
Accessories
 		7165A (Line probe)
7224A (Earth cord)
7225A (Guard cord)
8019 (Hook type prod)
8327EU (Power adapter 15V/1A)
9171 (Carring case [Hard])
Instruction manual
Optional accessories
 		7168A (Line probe with alligator clip)
7253 (Longer line probe with alligator clip)
8212-USB (USB adapter)
8302 (Adapter for recorder 1mV/1µA)

Please download “KEW Windows for KEW 3127(software)” from here.

(*1): IR mode only
(*2): Determined by resistance and Voltage values (over 10MΩ)
(*3): No measurements are possible while charging
(*): Bluetooth is a registered trademark of the Bluetooth SIG, Inc.
