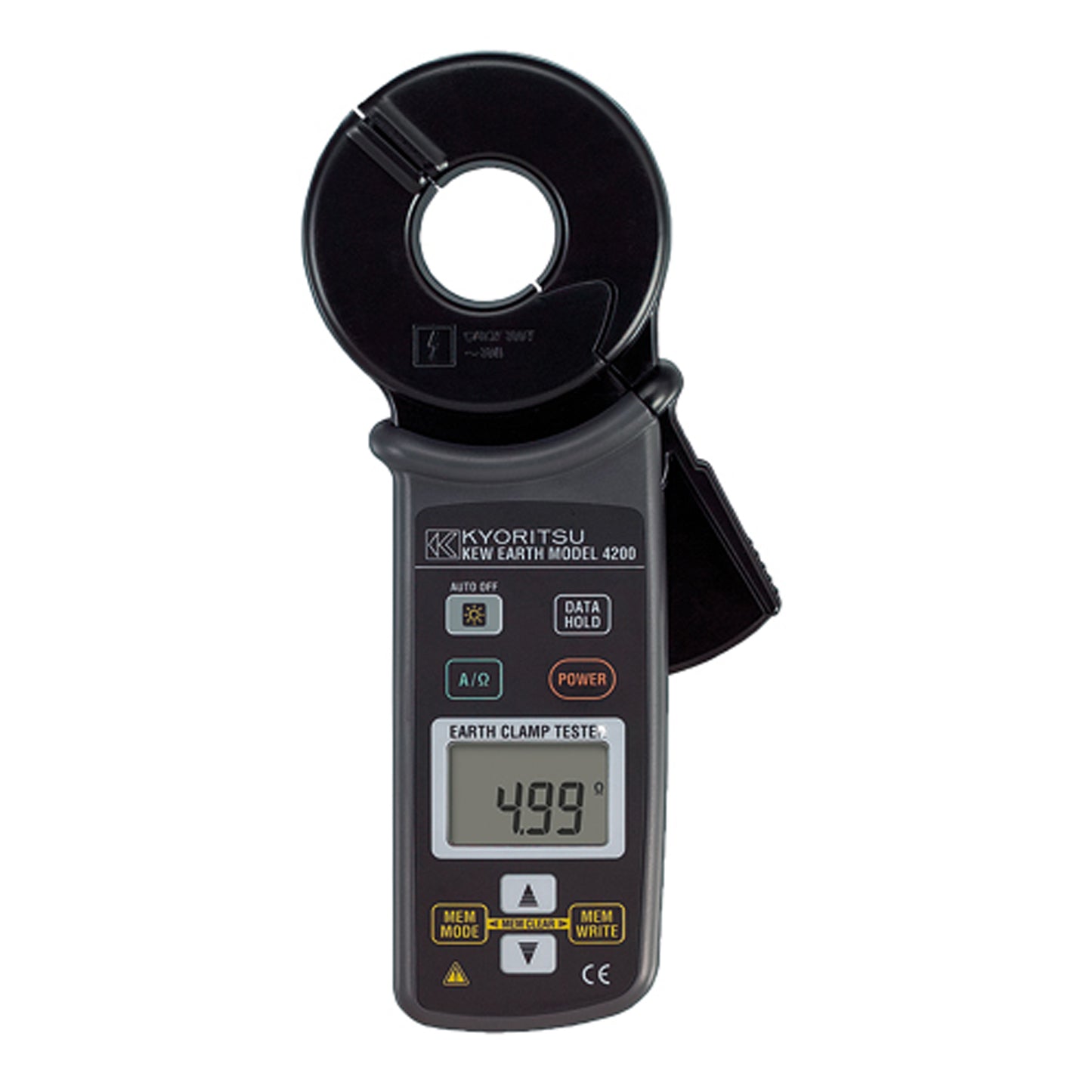

KYORITSU EARTH CLAMP TESTER 4200
KYORITSU EARTH CLAMP TESTER 4200
Regular price
63,600.00 EGP
Regular price
64,000.00 EGP
Sale price
63,600.00 EGP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
KYORITSU EARTH CLAMP TESTER 4200
- The earth resistance from 0.05 to 1500Ω can be measured without the auxiliary earth spikes in multi-earthing systems
- True RMS leakage or phase current readings from 0.1mA to 30.0A provides vital additional information in earthing networks
- Filter function offers increased immunity to electrical noise and a Noise mark appears in excessively high noisy environments
- Memory function up to 100 data
Note: A single earthing can not be measured. (Only for Multiple Earthing System)
Specification
| Earth resistance (Auto-ranging) | 20.00/200.0/1500Ω ±1.5%±0.05Ω(0.00 - 20.99Ω)*1 ±2%±0.5Ω(16.0 - 99.9Ω) ±3%±2Ω(100.0 - 209.9Ω) ±5%±5Ω(160 - 399Ω) ±10%±10Ω(400 - 599Ω) Values are displayed, but accuracy isn't guaranted(600 - 1580Ω) |
|---|---|
| AC current (50/60Hz) (Auto-ranging) |
100.0/1000mA/10.00/30.0A ±2%±0.7mA(0.0 - 104.9mA) ±2%(80mA - 31.5A) |
| Operating indication | Earth resistance function : Constant voltage injection Current detection (Frequency : Approx.2400Hz) Dual Integration AC current function : Successive approximation |
| Over-range indication | "OL"is displayed when input exceeds the upper limit of a measuring range |
| Response time | Approx. 7 seconds (Earth resistance) Approx. 2 seconds (AC current) |
| Sample rate | Approx. 1 times per second |
| Current consumption | Approx. 50mA (max.100mA) |
| Measurement time | Approx.12 hours (when R6 is used) Approx.24 hours (when LR6 is used) |
| Auto power off | Turns power off about 10 minutes after the last button operation. |
| Conductor size | Approx. Ø32mm |
| Applicable standards | IEC 61010-1 CAT Ⅳ 300V Pollution degree2 IEC 61010-2-032, IEC 61326 (EMC) |
| Power source | LR6/R6 (AA)(1.5V) x 4 |
| Dimension | 246(L)×120(W)×54(D)mm |
| Weight | Approx. 780g (including batteries) |
| Accessories |
8304 (Resister for operation check) 9166 (Carrying case[Hard]) R6 x 4, Instruction manual |
* Crest factor ≦ 2.5 (50/60Hz, peak value shall not exceed 60A)
*1 4 counts or less are corrected to 0.
