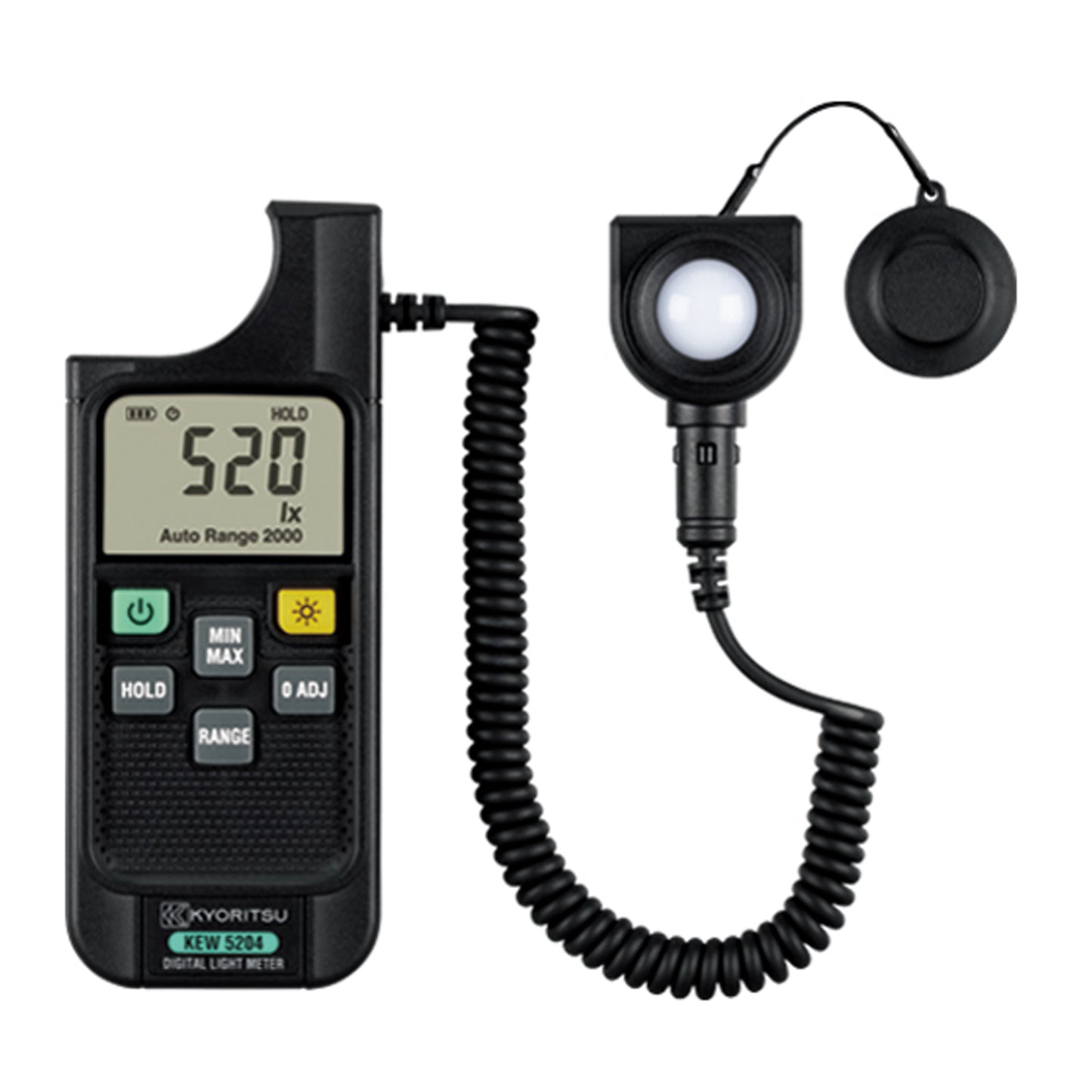

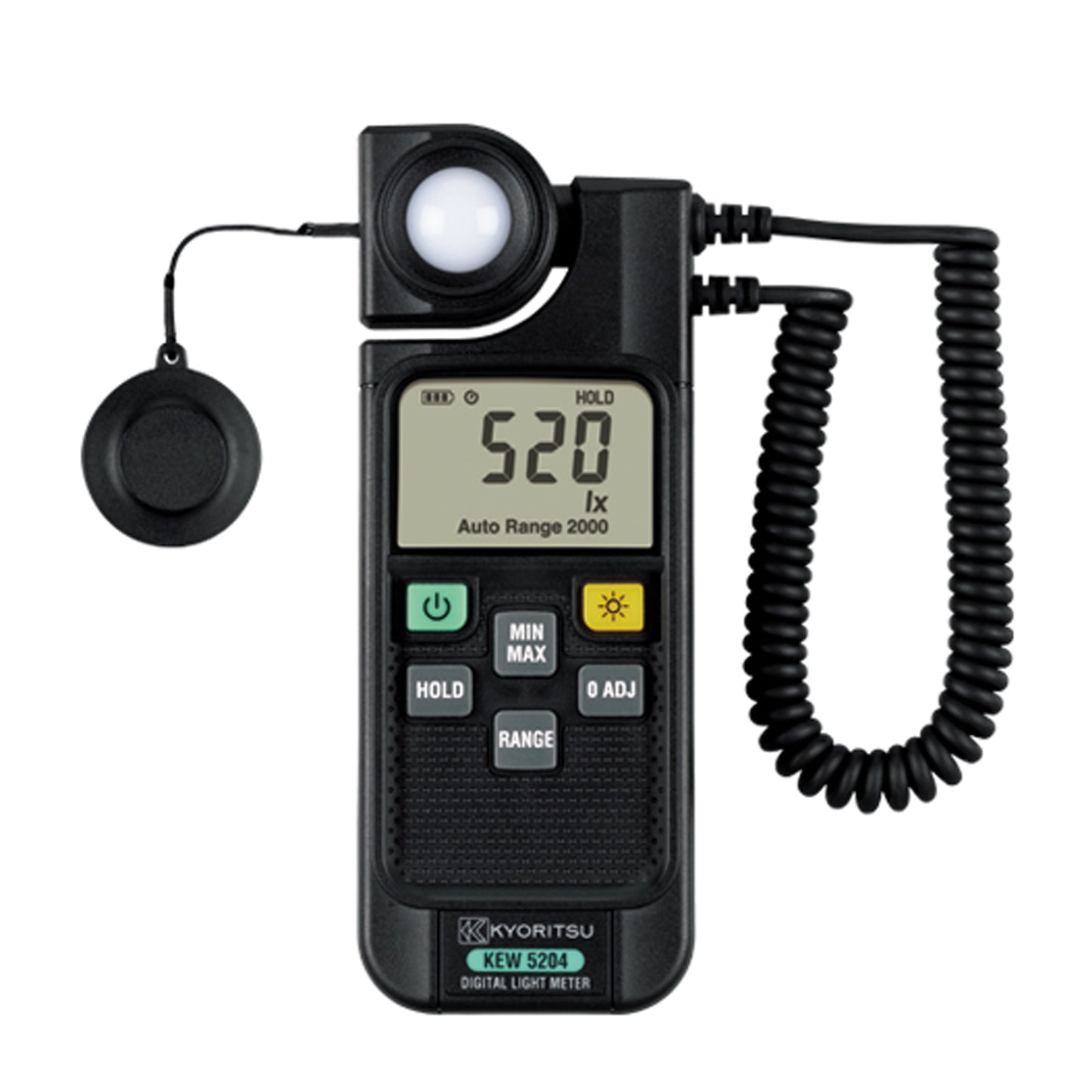

KYORITSU LIGHT METER KEW 5204

KYORITSU LIGHT METER KEW 5204

Regular price 11,350.00 EGP
Regular price 11,350.00 EGP Sale price 11,350.00 EGP
Sale Sold out
Shipping calculated at checkout.

KYORITSU LIGHT METER KEW 5204

Wide Range Illuminance Measurement 0.0 lx to 199900 lx

  • Detachable & Rotatable Light Sensor
  • Data Hold Function
  • MAX/MIN Function
  • Large LCD with Backlight
  • LED illuminance can be measured

*LED illuminance measurements are verified by testing only the typical illuminance, frequency, and duty ratio of pulsed white LED.

Specification

Measuring Range 0.0~199900 lx
Range 199.9/1999/19990/199900 lx
Resolution 0.1 lx
Light detector Silicon photo diode
Accuracy ±4%rdg±5dgt(23℃±2℃)
Angle deviation from
cosine characteristics
10°±1.5%
30°±3%
60°±10%
80°±30%
Relative spectral
sensitivity characteristics
Deviation from spectral luminous
efficiency:9%
Response time Auto-ranging:5s or less
Manual ranging:2s or less
Power source R6/LR6(AA)(1.5V) x 2
Auto power off 30 min.
Operating temperature and humidity range 0 - 40°C,relative humidity 80% or less(no condensation)
Storage temperature and humidity range -10 - 60℃,relative humidity 70% or less(no condensation)
Dimension / Weight 169(L)x63(W)x37(D)mm / Approx. 210g
Applicable Standards IEC 61326, JIS C 1609-1:2006
Accessories 9195 (Carrying case)
Instruction Manual
LR6(AA)×2
