KYORITSU LIGHT METER KEW 5204BT
KYORITSU LIGHT METER KEW 5204BT
Regular price
20,300.00 EGP
Regular price
20,300.00 EGP
Sale price
20,300.00 EGP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

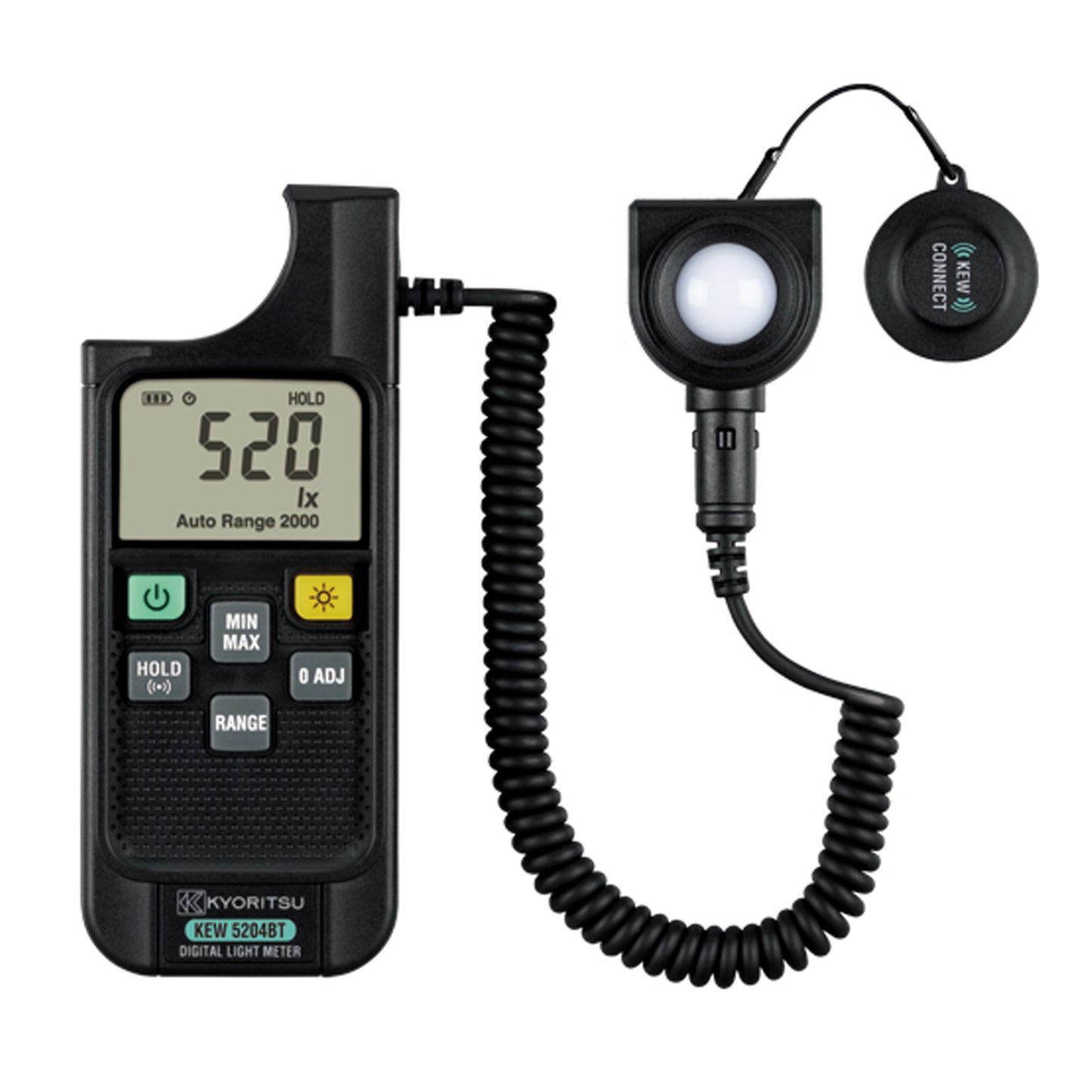

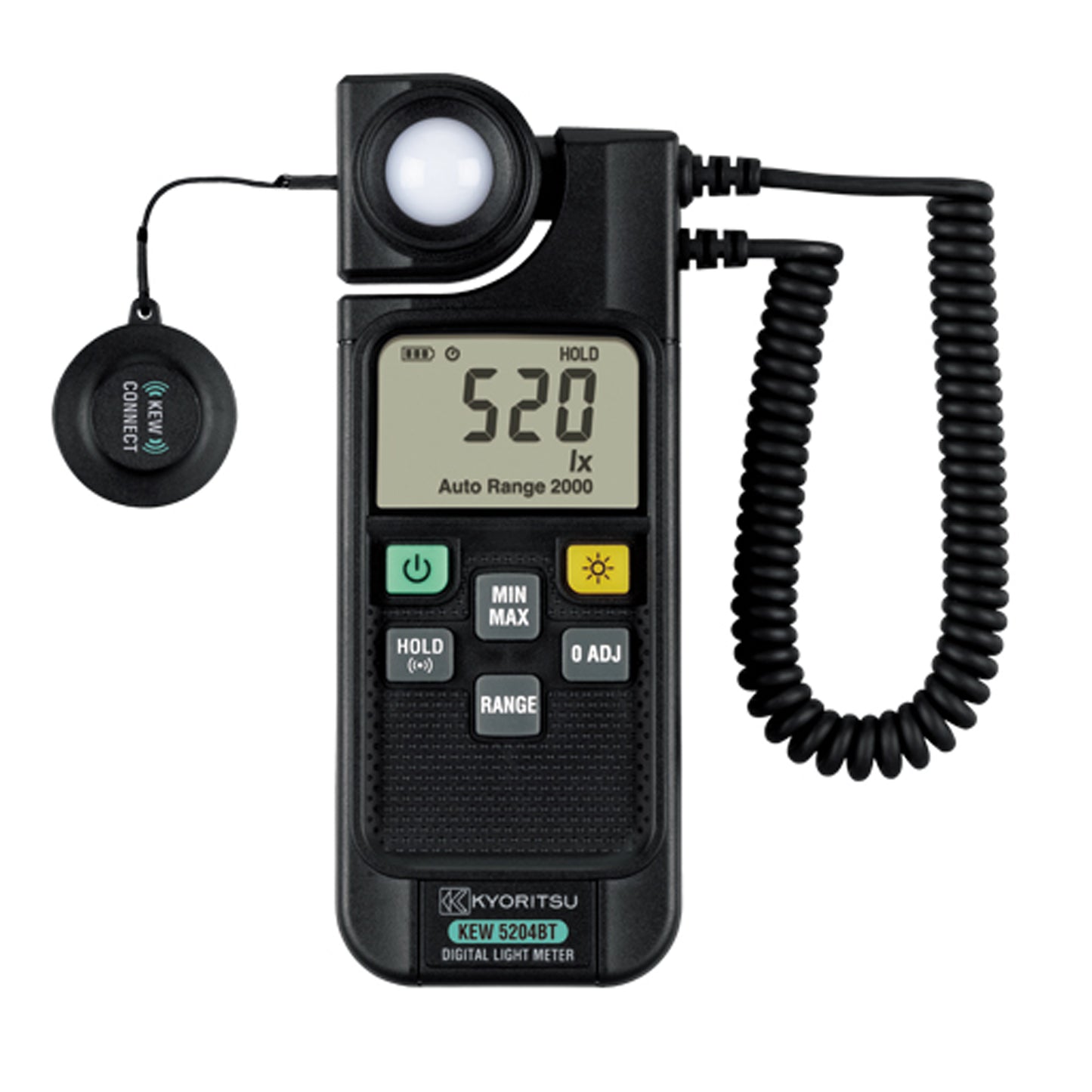

KYORITSU LIGHT METER KEW 5204BT
For efficient good illuminance level achievement and management!
- Detachable & Rotatable Light Sensor
- Data Hold Function
- MAX/MIN Function
- Large LCD with Backlight
- LED illuminance can be measured
*LED illuminance measurements are verified by testing only the typical illuminance, frequency, and duty ratio of pulsed white LED.
Specification
| Measuring Range | 0.0～199900 lx | |
|---|---|---|
| Range | 199.9/1999/19990/199900 lx | |
| Resolution | 0.1 lx | |
| Light detector | Silicon photo diode | |
| Accuracy | ±4%rdg±5dgt（23℃±2℃） | |
| Angle deviation from cosine characteristics |
10°±1.5% 30°±3% 60°±10% 80°±30% |
|
| Temperature characteristics |
±5% (at23℃ reference and a range of 0 to 40℃) | |
| Relative spectral sensitivity characteristics |
Deviation from spectral luminous efficiency: 9% |
|
| Response time | Auto-ranging: 5s or less Manual ranging: 2s or less |
|
| Communication interface | Bluetooth®5.0 | |
| Power source | R6/LR6(AA)(1.5V) x 2 | |
| Auto power off | 30 min. | |
| Operating temperature and humidity range | 0 - 40°C, relative humidity 80% or less(no condensation) | |
| Storage temperature and humidity range | -10 - 60℃, relative humidity 70% or less(no condensation) | |
| Dimension / Weight | 169 (L) x63 (W) x37 (D) mm / Approx. 210g | |
| Applicable Standards | JIS C 1609-1:2006, IEC 61326 | |
| Accessories |
9195 (Carrying case) Instruction Manual LR6(AA)×２ |
|
