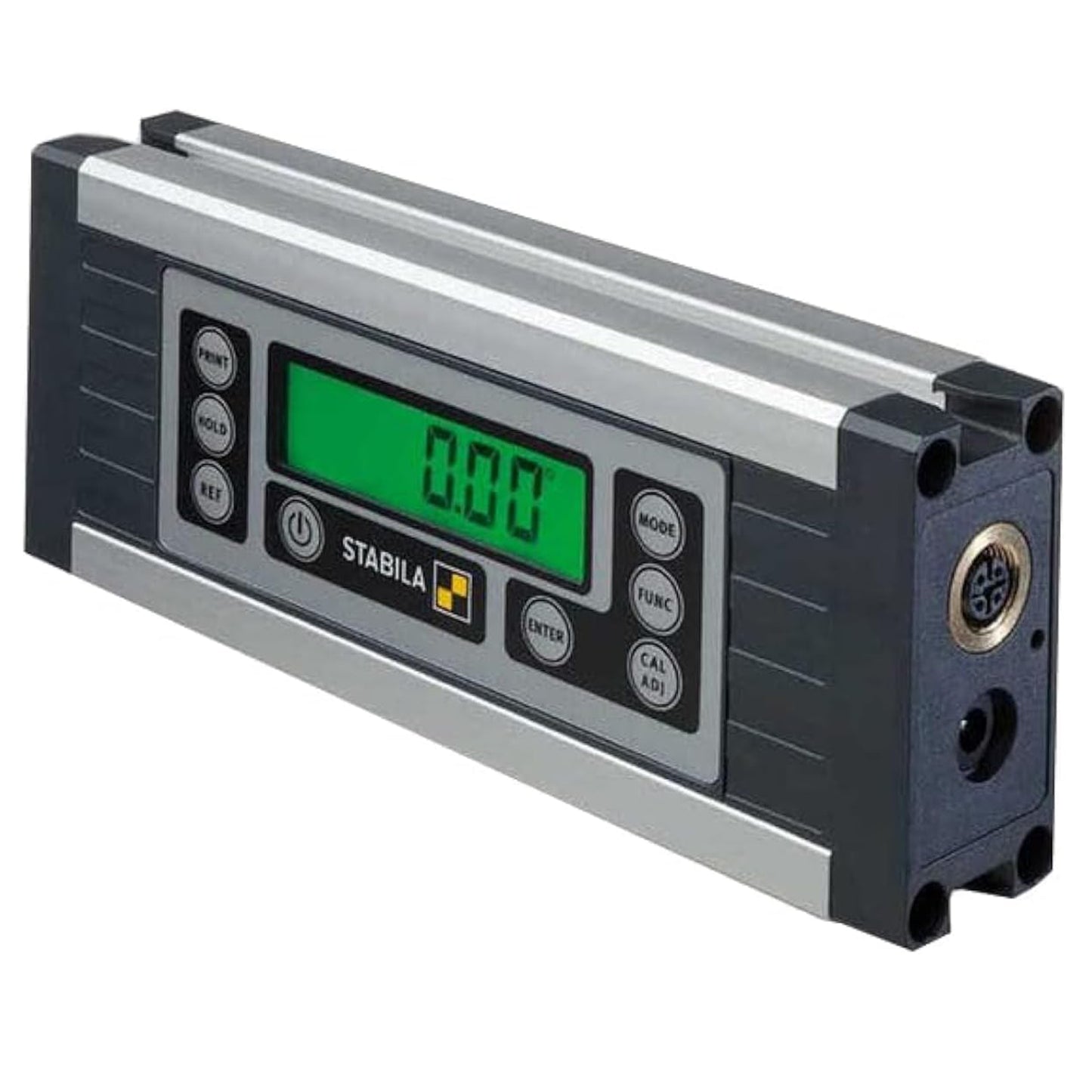

STABILA TECH 1000 DP digital protractor

TECH 1000 DP digital protractor

Electronic inclination measurement redefined: precision measurement – smart documentation

2 year Guarantee

Description

Do you want to make your processes even more efficient? Then you’ll love this digital protractor from STABILA. Its standout features include an extensive measuring range of 0° to 360° and smart data transmission to peripheral devices – such as machine controllers and computers – via MODBUS, the proven industry standard. A T-groove and V-groove, plus the integrated rare-earth magnet, provide a range of options for mounting the tool in place. The TECH 1000 DP is a state-of-the-art, high-quality product that’s made in Germany. Compact and robust, it provides the very best possible protection in line with IP 65.

Technical data

Accuracy (+/-) at 0°, 90°, 180° and 270° : 0,05°
Accuracy (+/-) at 1° to 89°, 91° to 179°, 181° to 269°, 271° to 359° : 0,1°
Number of measuring surfaces : 2
Operating life : 150 h
Measuring modes : °, %, mm/m, inch/ft
Protection class : IP 65
Battery type : ions
Mounting options : T-groove, V-groove, rare-earth magnet
Interface : RS485 with MODBUS protocol

Product advantages

  • Digital protractor for measurements from 0° to 360°.
  • Digital display with lighting that can be activated – optimum readability.
  • Anodised measuring surfaces – durable and robust.
  • Waterproof and dustproof in accordance with protection class IP 65.
  • Range of mounting options: T-groove, V-groove and rare-earth magnet system.
  • Variable power supply: integrated Li-ion battery, mains plug or interface.
  • Can be used as a measuring station.

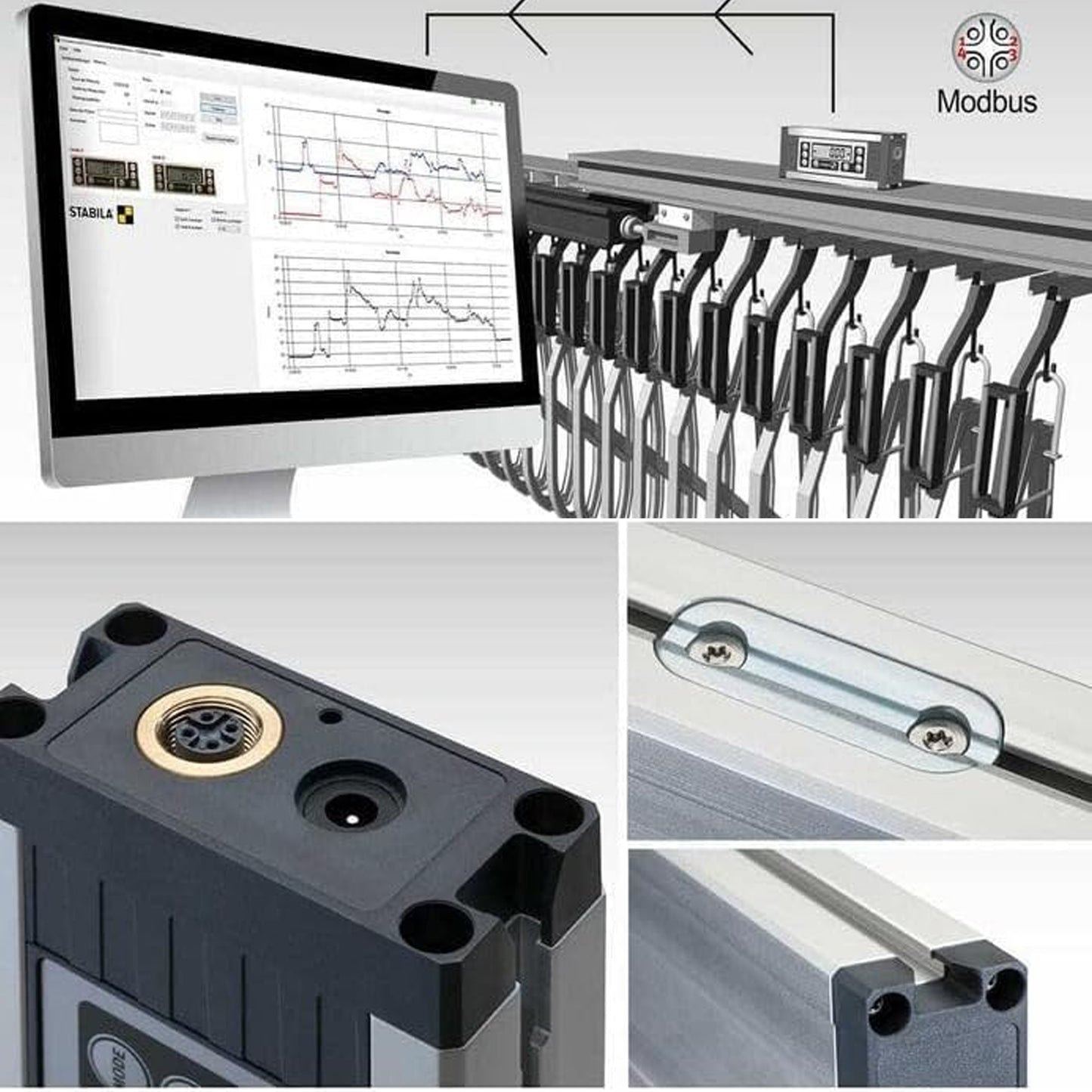

  • RS-485 interface with MODBUS protocol for documentation: 1) PRINT MODE: measurement after pressing a button. 2) AUTO MODE: measurement after any request.
  • STABILA ANALYTICS software for analysis and documentation.
  • Can be used as a hand-held device.
  • REF function: fast measurement in relation to a reference angle.
  • HOLD function: saves the measured value.
  • Display modes: °, %, mm/m, in/ft – decimal.
  • Digital display rotates in reverse position.
  • Mains adapter with 4 country-specific interchangeable plug types.
  • Includes USB data cable with M12 connector and 4-pin data cable with M12 connector.
  • Includes bag.

Application examples

  • As part of automation: modernisation and digitisation of existing machines in production.
  • In quality assurance: measuring, recording and documenting key values.
  • During production: when performing maintenance on and setting machines, and when carrying out long-duration measurements for checking and monitoring processes.
  • In special-purpose mechanical engineering: long-term measurements for recording position changes when commissioning a machine and transferring measured values for analysis and documentation in the transfer report.
