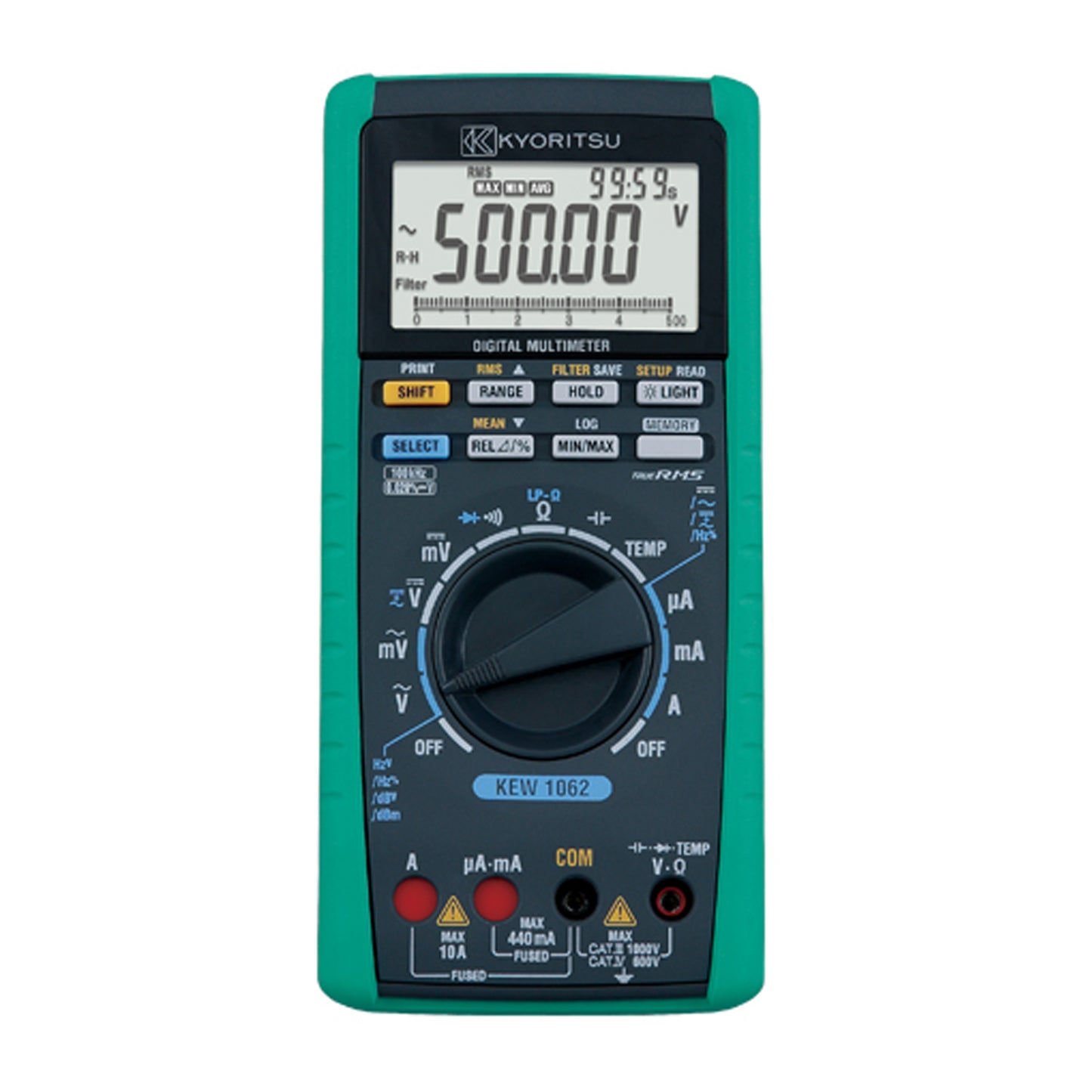

KYORITSU DIGITAL MULTIMETER KEW 1062
KYORITSU DIGITAL MULTIMETER KEW 1062
تعذر تحميل إمكانية الاستلام
KYORITSU DIGITAL MULTIMETER KEW 1062
High Accuracy, High Performance and Reliable Measurements
- 0.02% basic DC accuracy
- Large display with 50,000 counts
- Dual display for double indication for AC and DC, V and Hz, etc.
- True-RMS Measurements AC and AC+DC
- Wide AC Frequency bandwidth from 10Hz to 100kHz
- True-RMS or MEAN value detection mode can be selected
- Fast Peak Hold response time of 250µs
- Low-pass filter for motor drive measurements
- Low Power Ω for resistance measurements on sensible electronic circuits by a low and safe test current
- User calibration function
Safety design for industrial use
- Complies with IEC 61010-1 CAT IV 600V, CAT III 1000V
- Terminal shutter to prevent incorrect test leads' insertion in current terminals
- Very wide operating temperature range from -20 to 55ºC
Reliable support for data management
- Large data internal memory
KEW 1062: 10,000 data (logging), 100 data (manual) - Download data and Live Monitoring on a PC via the USB interface
(Option for USB Communication set)
* MAX 32,767 data can be transferred.
Specification
| Detection mode | MEAN/Ture RMS (switch) |
|---|---|
| DC V | 50.000/500.00/2400.0mV/5.0000/50.000/500.00/1000.0V (Input impedance: Approx. 100MΩ [50/500/2400mV], 10MΩ [5/50/500/1000V]) ±0.02%rdg±2dgt (Basic accuracy) |
| AC V [Ture RMS] | 50.000/500.00mV/5.0000/50.000/500.00/1000.0V (Input impedance: 11MΩ<50pF [50/500mV/5V], 10MΩ<50pF [50/500/1000V]) ±0.4%rdg±30dgt (Basic accuracy) |
| AC V [MEAN] | 50.000/500.00mV/ 5.0000/50.000/500.00/1000.0V (Input impedance:11MΩ<50pF [50/500mV/5V],10MΩ<50pF [50/500/1000V]) ±1%rdg±30dgt (Basic accuracy) |
| DCV+ACV | 5.0000/50.000/500.00/1000.0V (Input impedance: 11MΩ<50pF [5V], 10MΩ<50pF [50/500/1000V]) ±0.5%rdg±10dgt (Basic accuracy) |
| DC A | 500.00/5000.0µA/50.000/500.00mA/5.0000/10.000A ±0.2%rdg±5dgt (Basic accuracy) |
| AC A [Ture RMS] | 500.00/5000.0µA/50.000/500.00mA/5.0000/10.000A ±0.75%rdg±20dgt (Basic accuracy) |
| AC A [MEAN] | 500.00/5000.0µA/50.000/500.00mA/ 5.0000/10.000A ±1.5%rdg±20dgt (Basic accuracy) |
| DCA+ACA | 500.00/5000.0µA/50.000/500.00mA/5.0000/10.000A ±1%rdg±10dgt (Basic accuracy) |
| Ω | 500.00Ω/5.0000/50.000/500.00kΩ/5.0000/50.000MΩ ±0.05%rdg±2dgt (Basic accuracy) |
| LowPower-Ω | 5.000/50.00/500.0kΩ/5.000MΩ ±0.2%rdg±3dgt (Basic accuracy) |
| Continuity buzzer | 500.0Ω (The buzzer turns on at resistances lower than 100±50Ω) |
| Diode test | 2.4000V ±1%rdg±2dgt Open curcuit voltage: <5V (Approx. 0.5mA Measuring Current) |
| Capacitance | 5.000/50.00/500.0nF/5.000/50.00/500.0µF/5.000/50.00mF ±1%rdg±5dgt (Basic accuracy) |
| Frequency | 2.000 - 9.999/9.00 - 99.99/90.0 - 999.9Hz/0.900 - 9.999/9.00 - 99.99kHz ±0.02%rdg±1dgt (Basic accuracy) |
| DUTY | 10 - 90% ±1%rdg |
| Temperature | -200 - 1372ºC ±1%rdg±1.5ºC -328 - 2501.6ºF ±1%rdg±2.0ºF (with the use of K-type Temperature probe) |
| Measurement functions | DC Voltage, AC Voltage, DC Current, AC Current, Resistance, Frequency, Temperature Capacitor, Duty cycle ratio, Decibel (dBV, dBm), Continuity Check, Diode Test, LowPower-Ω |
| Other functions |
Data Hold (D/H), Auto Hold (A/H), Peak Hold (P/H), Range Hold (R/H), Maximum value (MAX), Minimum value (MIN) |
| Applicable standards | IEC 61010-1 CAT IV 600V / CAT III 1000V Pollution degree 2 IEC 61010-031, IEC 61326-1 (EMC) |
| Power source | R6 (1.5V)×4 (Auto power off: approx. 20 minutes) |
| Dimension | 192(L)×90(W)×49(D) mm |
| Weight | Approx. 560g (including batteries) |
| Accessories |
7220A (Test leads) |
| Optional accessories |
7234 (Alligator clip) |
