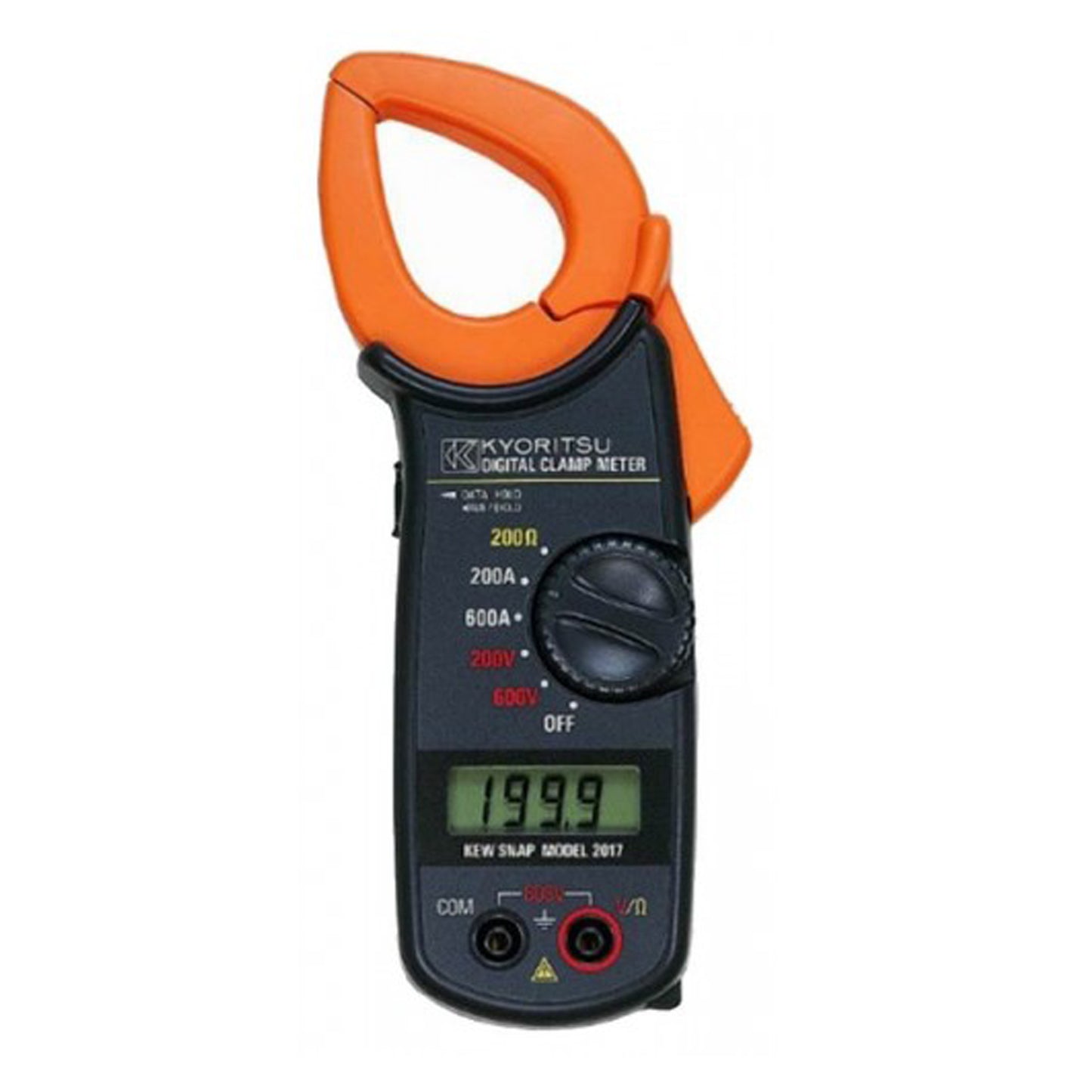

KYORITSU AC CLAMP METER 2017
KYORITSU AC CLAMP METER 2017
السعر العادي
2,700.00 EGP
السعر العادي
2,890.00 EGP
سعر البيع
2,700.00 EGP
سعر الوحدة
/
لكل
يتم احتساب الشحن عند الخروج.
تعذر تحميل إمكانية الاستلام
KYORITSU AC CLAMP METER 2017
• Tear drop shaped jaws for ease of use in tight places and crowded cable areas.
• Designed to meet internationally proven safety standards such as IEC 61010-1, UL3111 and VDE0411.
• Three functions in one unit; AC current, AC voltage and resistance.
• Resistance range provides audible continuity test.
• Frequency response from 40Hz to 1kHz on AC current and voltage ranges.
Specification
| AC A | 200/600A ±1.5%rdg±4dgt [50/60Hz] (200A) ±1%rdg±3dgt [50/60Hz] (600A) ±2%rdg±5dgt [45Hz - 1kHz] |
|---|---|
| AC V | 200/600V ±1%rdg±2dgt [50/60Hz] ±1.5%rdg±4dgt [45Hz - 1kHz] |
| Ω | 200Ω ±1.2%rdg±2dgt |
| Continuity buzzer | buzzer sounds below 30±20Ω |
| Conductor size | Ø33mm max. |
| Frequency response | 45Hz - 1kHz |
| Safety Standard | IEC 61010-1 CAT III 600V Pollution Degree 2 IEC 61010-2-032 |
| Power source | 6F22 (9V) × 1 |
| Dimension | 208(L) × 91(W) × 40(D)mm |
| Weight | 400g approx. |
| Accessories | 7066A (Test leads) 9079 (Carrying case) 6F22 × 1 Instruction Manual |
