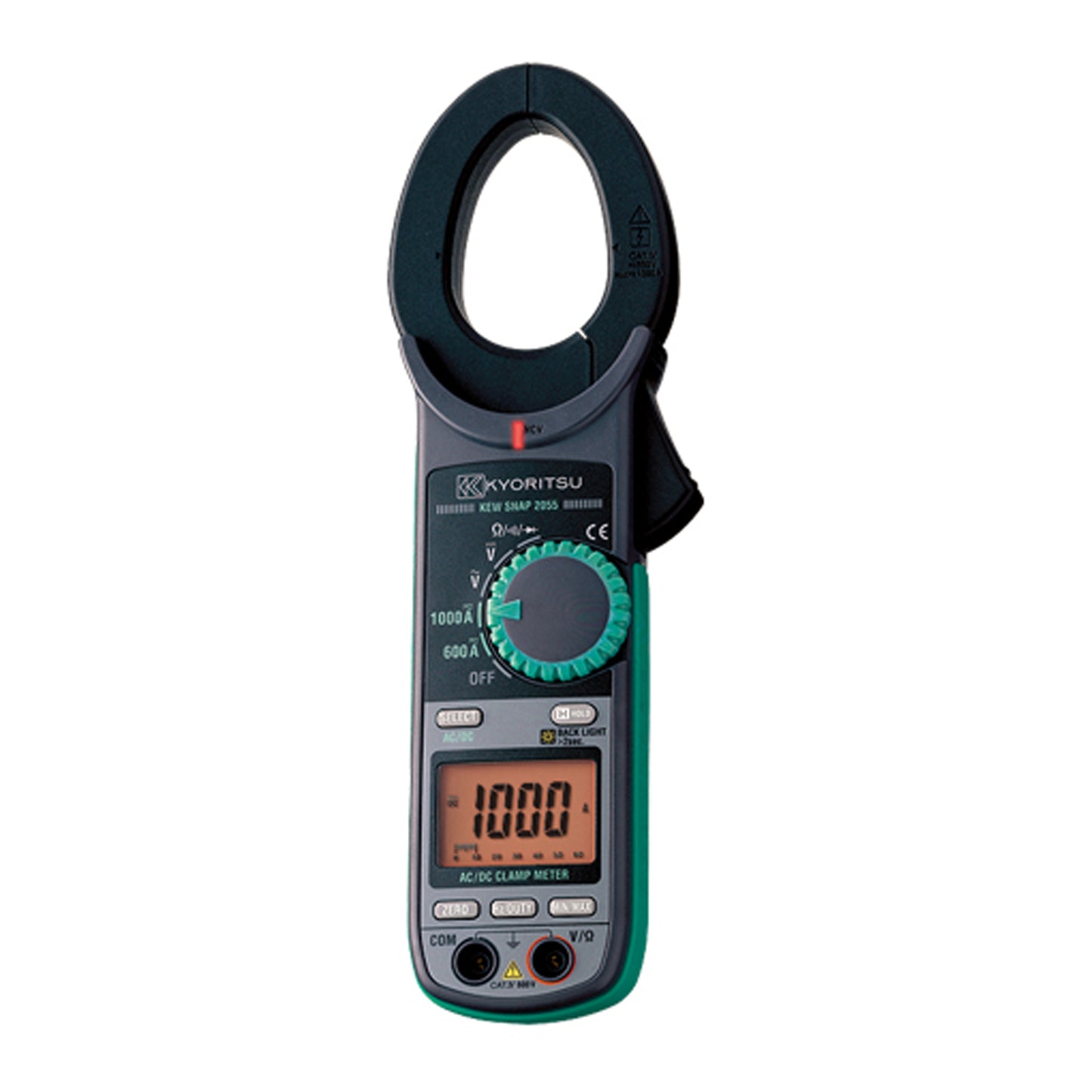

KYORITSU AC/DC CLAMP METER KEW 2055
KYORITSU AC/DC CLAMP METER KEW 2055
السعر العادي
14,600.00 EGP
السعر العادي
15,200.00 EGP
سعر البيع
14,600.00 EGP
سعر الوحدة
/
لكل
يتم احتساب الشحن عند الخروج.
تعذر تحميل إمكانية الاستلام
KYORITSU AC/DC CLAMP METER KEW 2055
- Very useful for power distribution companies, power utilities and maintenance fields
- Red LED, as “Non Contact Voltage” function, gives warning to the user on the presence of AC voltage
- Double molding gives comfortable feeling in palm
- 6039 counts with Bar Graph display
- Minimum resolution 0.1A
Specification
| AC A | 0 - 600.0/1000A ±1.5%rdg±5dgt (50/60Hz) ±3.0%rdg±5dgt (40 - 400Hz) |
|---|---|
| DC A | 0 - 600.0/1000A ±1.5%rdg±5dgt |
| AC V | 6/60/600V(Auto-ranging) ±1.3%rdg±4dgt (50/60Hz) ±3.0%rdg±5dgt (40 - 400Hz) |
| DC V | 600mV/6/60/600V(Auto-ranging) ±1.0%rdg±3dgt |
| Ω | 600Ω/6/60/600kΩ/6/60MΩ (Auto-ranging) ±1%rdg±5dgt (600 - 6M) ±5%rdg±8dgt (60M) |
| Continuity buzzer | Buzzer Sounds at 100Ω |
| Frequency | 10/100Hz/1/10kHz(Auto-ranging) |
| DUTY | 0.1 - 99.9% |
| Conductor size | Ø40mm |
| Safety Standard | IEC 61010-1 CAT IV 600V, IEC 61010-031, IEC 61010-2-032, IEC 61326 |
| Power source | R03 (1.5V) (AAA) × 2 |
| Dimension | 254(L) × 82(W) × 36(D)mm |
| Weight | Approx. 310g |
| Accessories |
7066A (Test leads) 9094 (Carrying case) Instruction Manual |
