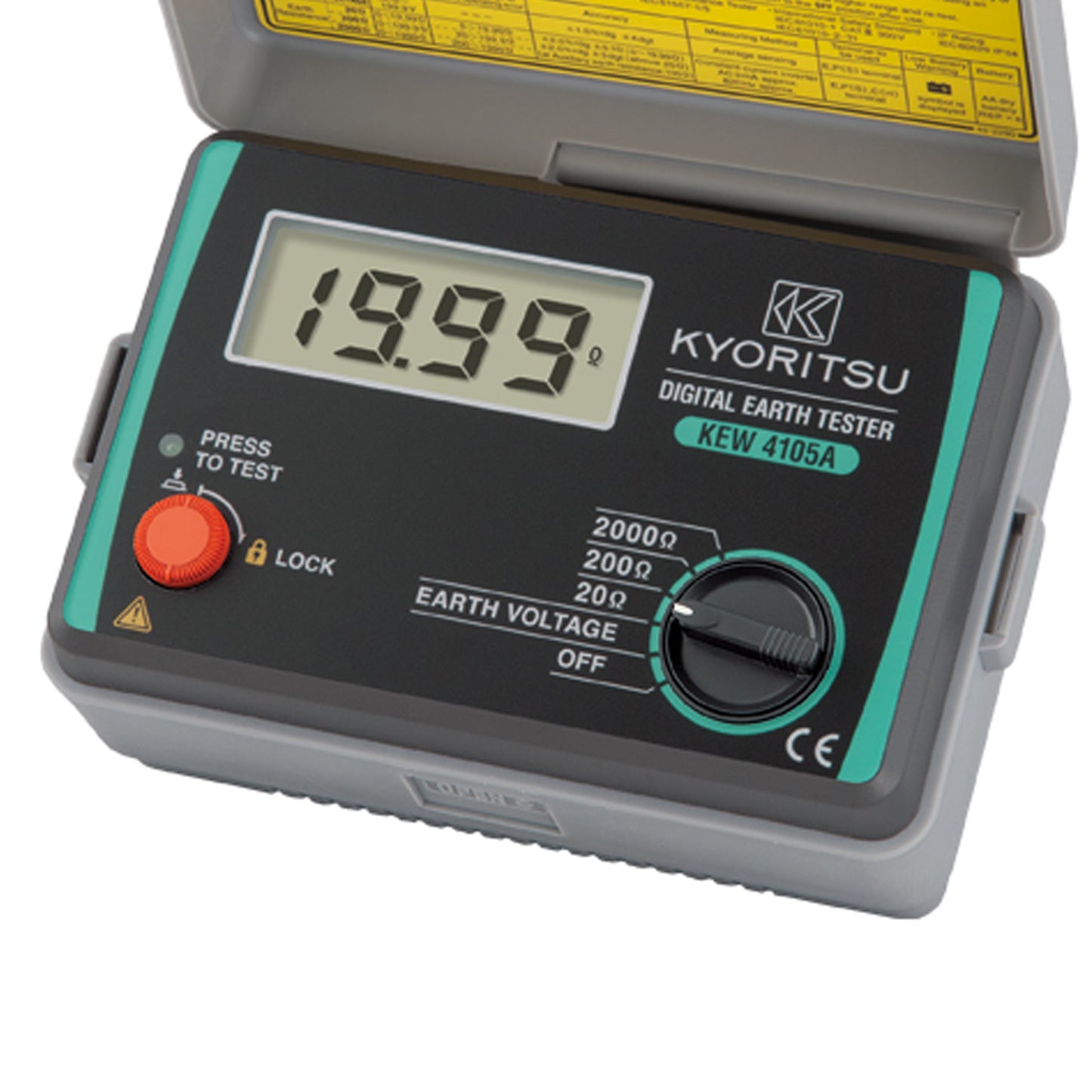

KYORITSU EARTH TESTER KEW 4105A
Soft Case Model
- 3-Pole and 2-Pole Earth Resistance
- The latest circuit design permits the instrument to operate with the minimum of influence from earth voltage and earth resistance of auxiliary earth spikes
- Dust and drip proof (designed to IEC 60529 IP54)
- Large, easy-to-read LCD digital display.
- Designed to meet IEC 61010-1 safety standard
- Capable of measuring earth voltage
- Small and lightweight. Shock resistant new case material
- 2mA measuring current permits earth resistance tests without tripping earth leakage current breakers in the circuit under test
Specification
| Earth resistance measurement |
20Ω | 200Ω | 2000Ω | |
|---|---|---|---|---|
|
|
Measuring range | 0.00 - 1999Ω | ||
| Display range | 0.00 - 19.99Ω | 0.0 - 199.9Ω | 0 - 1999Ω | |
| Accuracy | ±2%rdg±0.1 Ω | ±2%rdg±3dgt | ||
| Earth voltage measurement | ||||
|
|
Measuring range | 0 - 200 V AC (50,60Hz) | ||
| Display range | 0.0 - 199.9 V | |||
| Accuracy | ±1%rdg±4dgt | |||
| Overload protection | Earth resistance : 280V AC (10 seconds) Earth voltage : 300V AC (1 minute) |
|||
| Applicable standards | IEC 61010-1 CAT Ⅲ300 V Pollution degree 2 IEC 61010-2-030, IEC 61557-1,5, IEC 60529 (IP54) |
|||
| Power source | R6(AA)(1.5V) × 6 | |||
| Dimension | 105(L) × 158(W) × 70(D) mm (including case lid) | |||
| Weight | Approx. 550g (including batteries and case lid) | |||
| Accessories |
7095A (Earth resistance test leads (Red 20m, Yellow 10m, Green 5m/1set)) 7127B (Simplified measurement probe) 8032 (Auxiliary earth spikes[2 spikes/1set]) 9121 (shoulder strap) 9084 (Carrying case) R6(AA) × 6, Instruction manual |
|||
| Optional accessories |
7245A (Precision measurement cord set) 8259 (Adapter for measurement terminal) 9165 (Carring case [Hard]) |
|||
